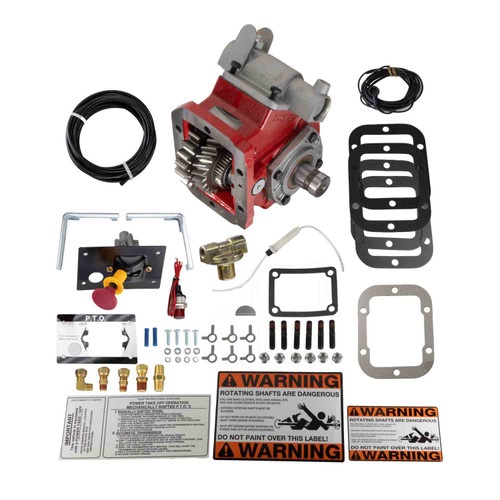

442XFDAX-A3XD Chelsea PTO Assembly

Chelsea

Listing Price: $2,872.89
Sale Price: $1,580.09

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL442XFDAXA3XD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 442 Series Power Take-Off Assembly, part number 442XFDAX-A3XD or 442XFDAXA3XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit uses air shift actuation, a standard mount, and a 1-1/4" round standard output shaft. The no-pressure-lube configuration (X) keeps maintenance simple. A cast iron housing and tapered cone bearings on the output shaft deliver long service life under demanding daily use. Dimensions measure 8.38" H x 10.38" W x 14.25" L. Call us to confirm proper fit for your transmission and application.

Features

Chelsea 442 Series, 6-bolt transmission mount
Shift type: Air Shift
Output: 1-1/4" round standard shaft
No-pressure-lube configuration
Cast iron housing with tapered cone bearings on output shaft

Tech Specs

  • Product Series: 442
  • Mounting Option: Standard Mount (X)
  • Gear Ratio Code: F (21/37)
  • Input Gear Designator: DA
  • Lube Option: No Pressure Lube (X)
  • Shift Option: Air Shift (A)
  • Assembly Arrangement: 3
  • Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)

Additional Information

The Chelsea 442 Series is designed to work with virtually all existing 6-bolt transmission applications. Thirty-six output options and eleven internal speed ratios make it a versatile platform across vocational markets including aerial, construction, forestry, fire and rescue, and municipal equipment. Applications include snow and ice trucks, service trucks, dump trucks, and towing and recovery trucks.
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
