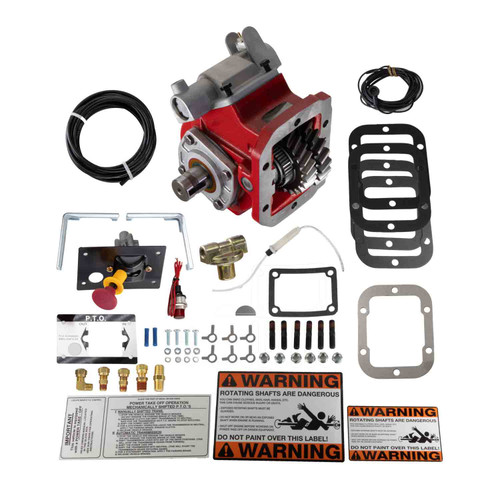

The Chelsea 442 Series Power Take-Off Assembly, part number 442XSDUX-A5XD or 442XSDUXA5XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs a 0.391:1 gear ratio with an air shift actuator and a 1-1/4" round standard output shaft. Mounting is standard with metric studs. The lubrication system requires no pressure lube. The cast iron housing and tapered cone bearings on the output shaft provide durability under demanding cycle loads. Rotatable output flanges allow for clearance adjustments during installation. Call us to confirm proper fit for your transmission application.
Features
Product Series: Chelsea 442 Series, 6-bolt transmission mount
Gear Ratio: 0.391:1
Shift Type: Air Shift
Output: 1-1/4" round standard shaft
Mounting: Standard mount with metric studs
Cast iron housing with tapered cone bearings on output shaft; greaseable output shafts and rotatable output flanges
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Assembly: 3
