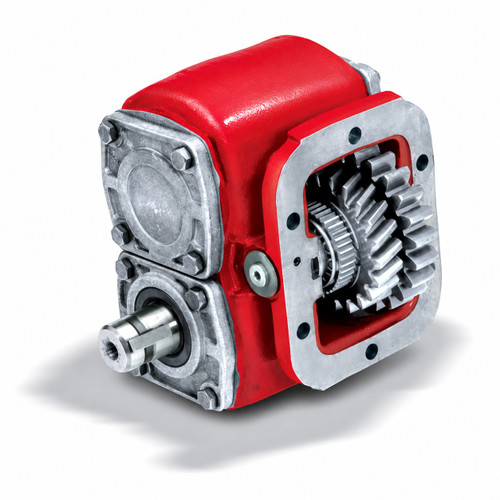

The Chelsea 442 Series Power Take-Off, part number 442XUBSX-W5XD or 442XUBSXW5XD, is a 6-bolt mount PTO built around a cast iron housing with tapered cone bearings on the output shaft. This unit runs a 0.391:1 gear ratio with air shift actuation and mounts using standard metric studs. The output is a 1-1/4" round standard shaft with no pressure lube requirement. Thirty-six output options and eleven internal speed ratios are available across the 442 Series, making it a proven fit for dump trucks, tow trucks, service trucks, and light-to-medium duty aerial applications. Call us to confirm proper fit for your transmission and application.
Features
Product Series: Chelsea 442
Gear Ratio: 0.391:1
Shift Type: Air Shift
Mounting: Standard 6-bolt mount with metric studs
Output: 1-1/4" round standard shaft
Lubrication: No pressure lube required
Housing: Cast iron with tapered cone bearings on output shaft
Output flanges: 360-degree rotatable for improved clearance
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
