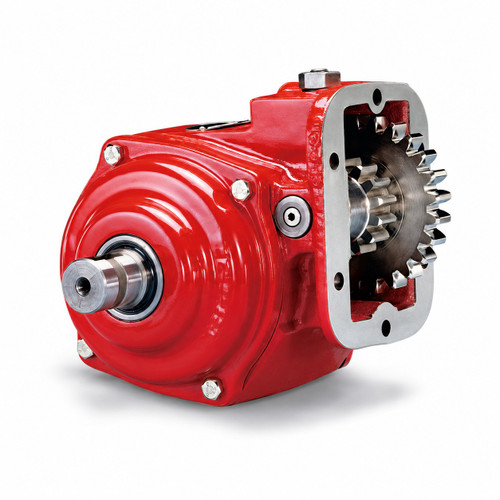

The Chelsea 442 Series Power Take-Off, part number 442XWAXX-A6XK or 442XWAXXA6XK, is a 6-bolt mount PTO with an air shift configuration and a 0.391:1 gear ratio. The output is a 1-1/4" round standard shaft, and the unit mounts via the standard configuration with metric studs. No pressure lube is required, simplifying routine maintenance. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the 442 Series, designed for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift activation
0.391:1 gear ratio
1-1/4" round standard output shaft
No pressure lube required
Cast iron housing with tapered cone bearings on the output shaft
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
