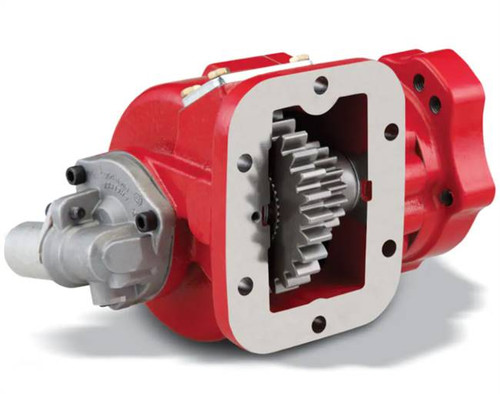

The Chelsea 442 Series Power Take-Off, part number 442XWBZX-W4XE or 442XWBZXW4XE, is a 6-bolt mount PTO built for light-to-medium duty vocational applications. This unit carries a 0.391:1 gear ratio and shifts via air actuation. The output is a 1-1/4" round standard shaft, and mounting uses standard 6-bolt geometry with metric studs. No pressure lube is required; the output shafts are greaseable for extended service intervals. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the Chelsea 442 Series, which covers tow trucks, service trucks, dump trucks, and aerial applications. Call us to confirm proper fit for your transmission.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Gear ratio: 0.391:1
Shift type: Air shift
Output: 1-1/4" round standard shaft
Cast iron housing with tapered cone bearings on the output shaft
Greaseable output shafts; no pressure lube required
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
