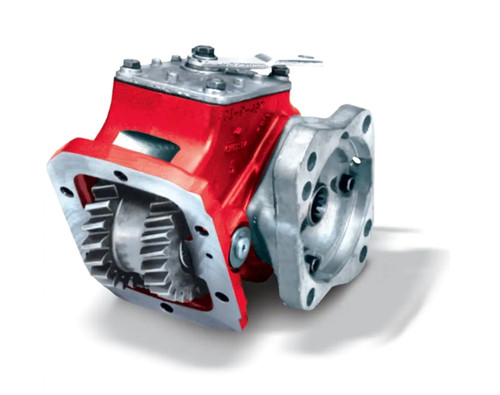

The Chelsea 442 Series Power Take-Off assembly, part number 442XWESX-W4RA or 442XWESXW4RA, is a 6-bolt mount PTO built around a cast iron housing with tapered cone bearings on the output shaft. This unit runs a 0.391:1 gear ratio with air shift actuation and a 1-1/4" round standard output shaft. Mounting is standard with metric studs. No pressure lube is required for this configuration. The low-profile shift cover and 360-degree rotatable output flange help with tight installation clearances. Greaseable output shafts are standard. Suited for tow trucks, service trucks, dump trucks, and aerial applications. Call us to confirm proper fit for your transmission.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft, greaseable for extended service
Cast iron housing with tapered cone bearings
Low-profile shift cover and 360-degree rotatable output flange for installation clearance
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
