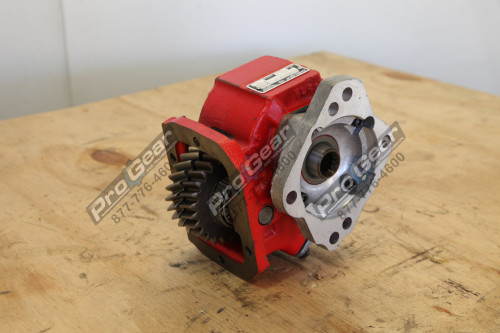

The Chelsea 442 Series Power Take-Off, part number 442XWFCX-W5XK or 442XWFCXW5XK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit carries a 0.391:1 gear ratio, air shift actuation, and a 1-1/4" round standard output shaft. Mounting uses the standard configuration with metric studs. The housing is cast iron with tapered cone bearings on the output shaft, and the design runs without a pressure lube system. The 442 Series supports up to 250 lb-ft intermittent torque and delivers up to 48 HP at 1,000 RPM at the shaft. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings for long service life
No pressure lube system; greaseable output shaft
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
