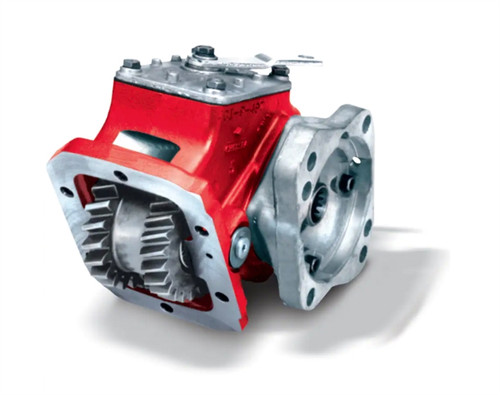

The Chelsea 447 Series Power Take-Off, part number 447XQITX-A3XD or 447XQITXA3XD, is a 6-bolt mounted PTO assembly designed around a one-piece input gear with a gap between its two sets of teeth. That gap is the defining engineering detail: it eliminates interference problems inside the transmission PTO aperture, making the 447 Series fit transmissions where a standard PTO would clash with adjacent gearing. Compatible transmissions include Eaton/Fuller and ZF units, among others. The wire/cable mechanical shift delivers output power of 36-45 HP (31-40 kW), with shaft power rated at 21 HP at 500 RPM and 43 HP at 1000 RPM. The output shaft is a 1-1/4" round design, also available with keyway. Four internal speed ratios and tapered bearings instead of needle bearings give this unit stronger load-bearing capability than earlier Chelsea series. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required for most installations
Wire/cable mechanical shift type
1-1/4" round output shaft (also available with key)
Intermittent torque rating: 201-300 lb-ft (301-400 Nm); check application pages for actual rating
Shaft power: 21 HP at 500 RPM, 43 HP at 1000 RPM
One-piece input gear design eliminates interference in the transmission PTO aperture
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (Check Application Pages for Actual Torque Ratings)
- Continuous Torque: De-rate intermittent rating 30% (Check Application Pages for Actual Torque Ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1000 RPM (16 kW at 500 RPM, 32 kW at 1000 RPM)
- Output Shaft Type: 1-1/4" Round, 1-1/4" Round with Key
- Mounting Type: 6-Bolt
- Compatible Transmissions: Eaton/Fuller, ZF, Other
