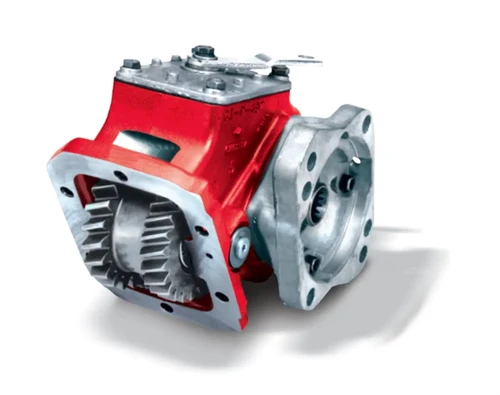

The Chelsea 447 Series Power Take-Off Assembly, part number 447XSESX-W3XK or 447XSESXW3XK, is a 6-bolt mounted PTO engineered to eliminate internal gear interference problems that occur on a wide variety of transmissions. It uses a one-piece input gear with a space between its two sets of gear teeth, which clears the PTO aperture on transmissions where adjacent gear interference would otherwise be an issue. Shift is accomplished via wire/cable or mechanical actuation. The output shaft is a 1-1/4" round configuration, with or without a keyway. This unit is compatible with Eaton/Fuller, ZF, and other transmission manufacturers. Output power for the 447 Series reaches 43 HP at 1,000 RPM, with intermittent torque ratings in the 201-300 lb-ft range (check application pages for your specific torque rating). For continuous-duty use, de-rate the intermittent torque rating by 30%. Call us to confirm proper fit for your truck and transmission.
Features
6-bolt mounting, no adapter plate required for most installations
Wire/cable or mechanical shift actuation
1-1/4" round output shaft, available with or without keyway
Compatible with Eaton/Fuller, ZF, and other transmission manufacturers
One-piece input gear design eliminates interference inside the transmission/PTO opening
Output shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (225 lb-ft / 305 Nm - Check Application Pages for Actual Torque Ratings)
- Continuous Torque: De-rate intermittent torque rating by 30% (Check Application Pages for Actual Torque Ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP (500 RPM), 43 HP (1,000 RPM) / 16 kW (500 RPM), 32 kW (1,000 RPM)
- Output Shaft Type: 1-1/4" Round; 1-1/4" Round with Key
- Mounting Type: 6-Bolt
- Transmission Compatibility: Eaton/Fuller, ZF, Other
