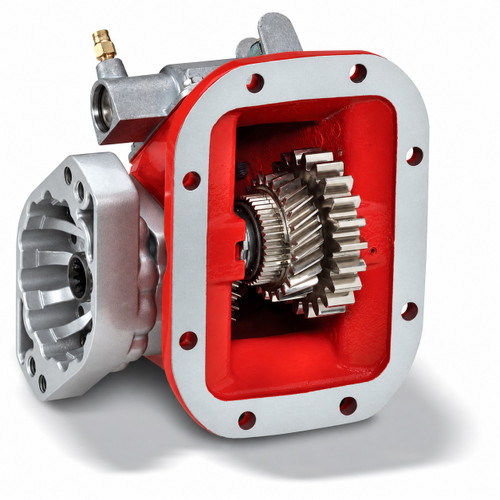

Genuine Chelsea PTO Assembly P/N: 447XSX-S5XK or 447XSETXS5XK. Do not hesitate to ask us any questions.
Features
Wide range of shift and output options
No adapter plate required
Eliminates interference problems inside transmission/PTO opening
Tech Specs
- Intermittent Torque: 201-300 lb-ft, 301-400 Nm, 225 (Check Application Pages for Actual Torque Ratings) lb-ft, 305 (Check Application Pages for Actual Torque Ratings) Nm
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: S
- Input Gear Designator: ET
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift with PTO/Dump Pump Combo Valve (with Kick-Out, with Neutral Spring Return) (S)
- Assembly Arrangement: 5
- Output Option: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (XK)
- Output Power: 36-45 HP, 31-40 kW
- Transmission Manufacturer: Other, ZF, Eaton/Fuller
- Mounting Type: 6-Bolt
- Shaft Power: 500 RPM: 21, 1000 RPM: 43 HP, 500 RPM: 16, 1000 RPM: 32 kW
- Weight: 21 lb, 9.5 kg
