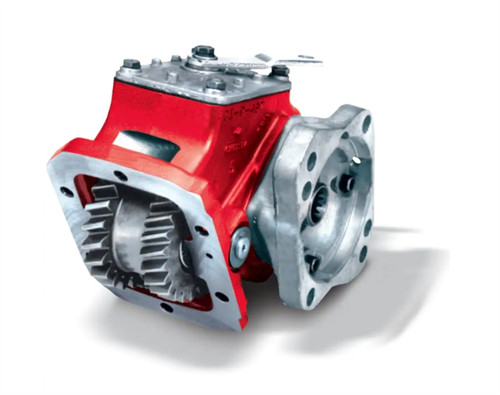

The Chelsea 447 Series Power Take-Off Assembly, part number 447XWESX-A3XK or 447XWESXA3XK, mounts via a 6-bolt pattern and uses air shift actuation. Output is an SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft. The 447 Series is designed specifically to eliminate internal interference problems at the transmission PTO opening, thanks to a one-piece input gear with a space between its two sets of gear teeth. Series intermittent torque rating runs from 201 to 300 lb-ft (301 to 400 Nm); check the application pages for actual torque ratings on your specific installation. Shaft power output is 21 HP at 500 RPM and 43 HP at 1000 RPM. Compatible with Eaton/Fuller, ZF, and other transmission manufacturers. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required
Air shift
SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Series intermittent torque: 201-300 lb-ft (301-400 Nm) - verify actual rating on application pages
Shaft power: 21 HP at 500 RPM, 43 HP at 1000 RPM
One-piece input gear design eliminates interference problems inside the transmission PTO opening
Compatible with Eaton/Fuller, ZF, and other transmission manufacturers
Tech Specs
- Mounting Type: 6-Bolt
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: W
- Input Gear Designator: ES
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 3
- Output Option: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (XK)
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings)
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1000 RPM (16 kW at 500 RPM, 32 kW at 1000 RPM)
- Transmission Compatibility: Eaton/Fuller, ZF, Other
