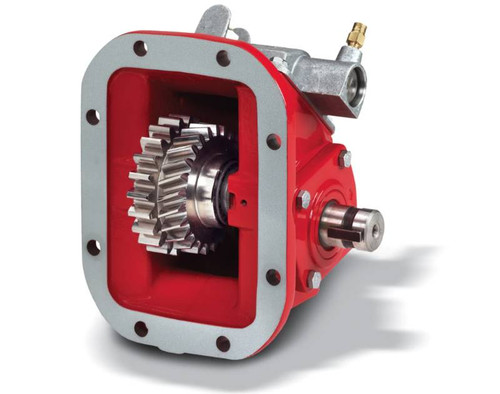

The Chelsea 489GHAHX-A3XQ or 489GHAHXA3XQ is a Series 489 Power Take-Off assembly built for Eaton/Fuller, Volvo/Mack, and other compatible transmissions. It uses a wire/cable mechanical shift and mounts via an 8-bolt pattern. The output shaft is a 1-1/4" round (with key option available), and intermittent torque ratings fall in the 201-300 lb-ft range (check Chelsea application pages for the torque rating specific to your installation). Shaft power output reaches 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, which simplifies parts sourcing and service. The kit-style design makes field servicing straightforward. Call us to confirm proper fit for your transmission and application before ordering.
Features
Series 489 PTO with 8-bolt transmission mounting
Wire/cable mechanical shift type
1-1/4" round output shaft (keyed option available)
Intermittent torque rating in the 201-300 lb-ft range (verify on Chelsea application pages)
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Internal parts common to Chelsea 442 Series for easier servicing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt
- SHIFT TYPE: Wire/Cable Mechanical
- OUTPUT SHAFT TYPE: 1-1/4" Round / 1-1/4" Round with Key
- INTERMITTENT TORQUE: 201-300 lb-ft (250 lb-ft nominal) / 301-400 Nm (339 Nm nominal) - Check Application Pages for Actual Torque Ratings
- OUTPUT POWER: 46-55 HP / 31-40 kW
- SHAFT POWER: 500 RPM: 24 HP (18 kW) | 1,000 RPM: 48 HP (36 kW)
- TRANSMISSION COMPATIBILITY: Eaton/Fuller, Volvo/Mack, Other
- LUBRICANT: X = No Pressure Lube, P = Pressure Lube
