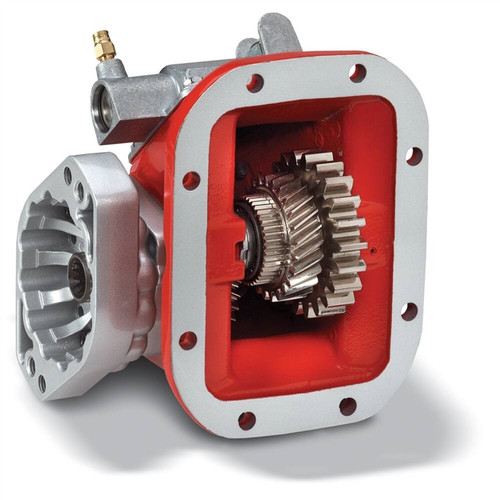

The Chelsea 489GSAHX-A3XK or 489GSAHXA3XK is a 489 Series power take-off assembly built for 8-bolt manual transmission openings on Eaton/Fuller, Volvo/Mack, and other compatible transmissions. Its one-piece cast iron housing mounts directly to the transmission without an adapter plate, eliminating a potential leak path compared to conventional bolt-up designs. Wire/cable mechanical shift operates the unit; the output shaft is a 1-1/4" round with key. The 489 Series shares internal parts with the 442 Series, offering up to 250 lb-ft intermittent torque and shaft power of 24 HP at 500 RPM and 48 HP at 1000 RPM. Common applications include utility trucks, dump trucks, and snow and ice removal equipment. Call us to confirm proper fit for your transmission.
Features
489 Series, 8-bolt one-piece cast iron housing mounts directly to transmission, no adapter plate required
Wire/cable mechanical shift; electric-over-air shift option also available
1-1/4" round output shaft with key
Intermittent torque rating up to 250 lb-ft (339 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1000 RPM
Internal parts common to Chelsea 442 Series for broad parts availability
Groaseable output options to reduce pump shaft spline fretting and corrosion
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt Direct Mount (no adapter plate)
- SHIFT TYPE: Wire/Cable Mechanical (Electric over Air option available)
- OUTPUT SHAFT TYPE: 1-1/4" Round with Key
- INTERMITTENT TORQUE: 250 lb-ft / 339 Nm (Check Application Pages for Actual Torque Ratings)
- SHAFT POWER: 24 HP (500 RPM), 48 HP (1000 RPM) / 18 kW (500 RPM), 36 kW (1000 RPM)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- TRANSMISSION COMPATIBILITY: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
- LUBRICANT: X = No Pressure Lube, P = Pressure Lube
- CROSS REFERENCES: 1450-489GSAHXA3XK, S-10756 or S10756, TG8B-U6812-A1KX or TG8BU6812A1KX, WA20-08-7087 or WA20087087
