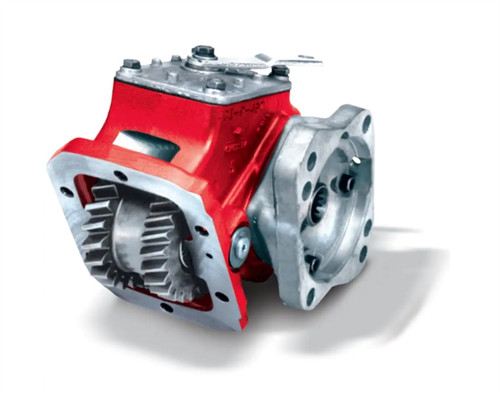

The Chelsea 489 Series Power Take-Off Assembly, part number 489GUAHX-V5XK or 489GUAHXV5XK, is a wire/cable mechanical shift PTO built for 8-bolt manual transmission openings on Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The one-piece cast iron housing bolts directly to the transmission without an adapter plate, eliminating a potential leak path. Output shaft is a 1-1/4" round with keyway. The 489 Series carries the same 250 lb-ft intermittent torque capacity as the 442 Series, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1000 RPM. Internal parts are common to the 442 Series, simplifying parts stocking. Typical applications include utility trucks, dump trucks, and snow and ice removal equipment. Call us to confirm proper fit for your application.
Features
8-bolt one-piece cast iron housing mounts directly to transmission without an adapter plate
Wire/cable mechanical shift; electric-over-air shift option also available in the 489 Series
1-1/4" round output shaft with keyway
Intermittent torque capacity: 250 lb-ft (339 Nm) - verify actual rating on Chelsea application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1000 RPM
Internal parts common to Chelsea 442 Series for simplified serviceability
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt (direct to transmission, no adapter plate required)
- SHIFT TYPE: Wire/Cable Mechanical
- OUTPUT SHAFT TYPE: 1-1/4" Round with Key
- INTERMITTENT TORQUE: 250 lb-ft / 339 Nm (check Chelsea application pages for actual torque ratings)
- CONTINUOUS TORQUE: De-rate intermittent torque rating by 30% (check Chelsea application pages for actual torque ratings)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- SHAFT POWER: 24 HP (500 RPM), 48 HP (1000 RPM) / 18 kW (500 RPM), 36 kW (1000 RPM)
- TRANSMISSION COMPATIBILITY: Eaton/Fuller, Volvo/Mack, and other 8-bolt manual transmissions
- LUBRICANT: X = No Pressure Lube, P = Pressure Lube (see model code)
