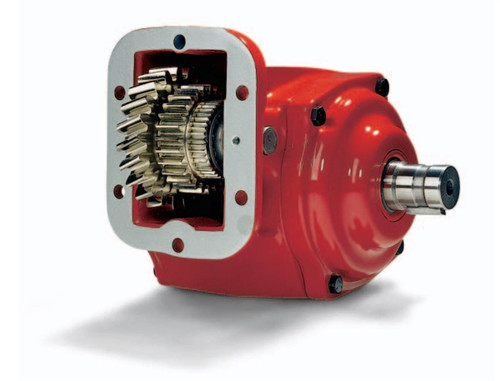

The Chelsea 489 Series Power Take-Off Assembly, part number 489XFAHX-A5RA or 489XFAHXA5RA, mounts directly to the 8-bolt transmission opening on most manual transmissions including Eaton/Fuller, Volvo/Mack, and Tremec without an adapter plate. The one-piece cast iron housing delivers the same intermittent torque capacity as the 442 Series. Shift type is wire/cable mechanical. Output shaft is a 1-1/4" round with key. Shaft power output reaches 24 HP at 500 RPM and 48 HP at 1,000 RPM, with an output power range of 46-55 HP. Tapered bearings replace needle bearings for greater load-bearing capability. Call Pro Gear and Transmission to confirm proper fit for your application.
Features
8-bolt direct-mount housing eliminates adapter plate and reduces potential leak paths
Wire/cable mechanical shift type; electric over air shift option available
1-1/4" round output shaft with key
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Tagered bearings replace needle bearings for greater load-bearing capability
Kit-style design shares internal parts with the Chelsea 442 Series for straightforward service
Greaseable output options to reduce pump shaft spline fretting and corrosion
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable Mechanical
- Output Shaft Type: 1-1/4" Round with Key
- Intermittent Torque: 201-300 lb-ft (301-400 Nm) - check application pages for actual torque ratings
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- Lubricant: X = No Pressure Lube; P = Pressure Lube
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
