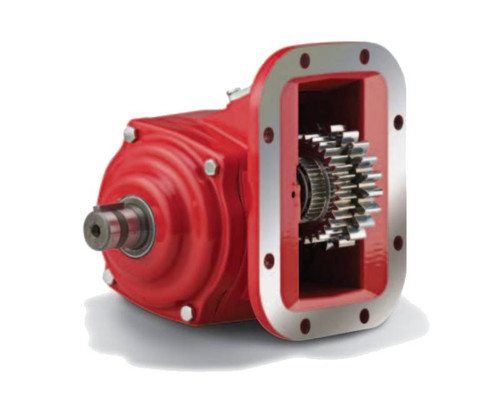

Stock photo not actual item

489XHAHX-P3AF Chelsea PTO Assembly

Chelsea

Listing Price: $3,520.68
Sale Price: $1,936.37

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489XHAHXP3AF
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series PTO Assembly, part number 489XHAHX-P3AF or 489XHAHXP3AF, is an 8-bolt power take-off designed for Eaton/Fuller, Volvo/Mack, and other compatible transmissions. Shift type is 12V electric/air shift, with an option for electric-over-air operation. The output is an SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft; the 489 Series is rated for 46-55 HP (31-40 kW) of output power. Intermittent torque rating falls in the 250 lb-ft range -- verify actual torque against the Chelsea application pages for your specific configuration. Internal parts are common to the Chelsea 442 Series, which simplifies sourcing service components. Available in a no-pressure-lube (X) configuration. Call us to confirm proper fit for your transmission and application.

Features

Product Series: Chelsea 489
Mounting Type: 8-Bolt
Shift Type: 12V Electric/Air Shift
Output Shaft: 1" 15-tooth SAE BB shaft on an SAE B 2 or 4-bolt flange
Output Power: 46-55 HP (31-40 kW)
Shaft Power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Compatible Transmissions: Eaton/Fuller, Volvo/Mack, and others
Internal parts common to the Chelsea 442 Series for easier serviceability
Kit-style design for straightforward in-field service

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt
  • Mounting Option: Standard Mount (X)
  • Gear Ratio Code: H (23/35)
  • Input Gear Designator: AH
  • Lube Option: No Pressure Lube (X)
  • Shift Option: 12V DC Electric/Air Shift (P)
  • Assembly Arrangement: 3
  • Output Option: SAE B 2 or 4-Bolt Flange, SAE BB Shaft (1" 15T) (AF)
  • Output Power: 46-55 HP (31-40 kW)
  • Shaft Power: 500 RPM: 24 HP (18 kW); 1,000 RPM: 48 HP (36 kW)
  • Intermittent Torque: 250 lb-ft / 339 Nm (check Chelsea application pages for actual torque rating for your configuration)
  • Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, Other
  • DIMENSIONS (H x W x L): 8.38 in. x 10.38 in. x 14.25 in.

Additional Information

Chelsea PTO 489 Series Model Break Down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
