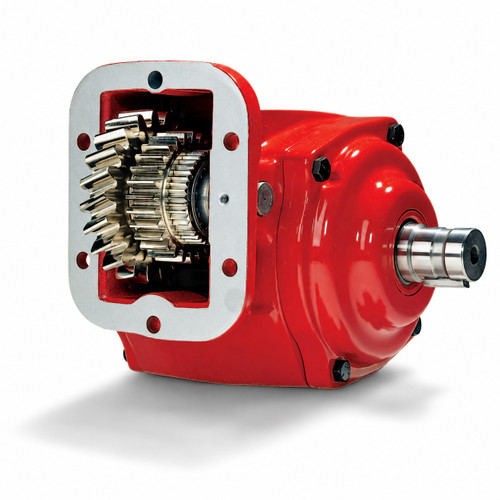

Stock photo not actual item

489XLAHX-A3AF Chelsea PTO Assembly

Chelsea

Listing Price: $3,125.28
Sale Price: $1,718.90

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489XLAHXA3AF
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series Power Take-Off Assembly, part number 489XLAHX-A3AF or 489XLAHXA3AF, is an 8-bolt PTO designed for manual transmissions including Eaton Fuller, Mack, and Tremec. The one-piece cast iron housing bolts directly to the 8-bolt transmission opening, eliminating the need for an adapter plate and reducing potential leak paths. Shift type is air shift. The 489 Series delivers intermittent torque in the 201-300 lb-ft range and shaft power of 24 HP at 500 RPM or 48 HP at 1000 RPM. Tapered bearings replace needle bearings for greater load capacity. Call us to confirm proper fit for your application.
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.

Interchanges:
  • S-17224
  • WA20-08-7119

Features

489 Series, 8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Air shift type
SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft
Intermittent torque rating: 201-300 lb-ft (301-400 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1000 RPM
Tapered bearings for greater load-bearing capability versus needle bearing designs
Internal parts common to the Chelsea 442 Series

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt
  • Mounting Option: Standard Mount (X)
  • Gear Ratio Code: L (25/34)
  • Input Gear Designator: AH
  • Lube Option: No Pressure Lube (X)
  • Shift Option: Air Shift (A)
  • Assembly Arrangement: 3
  • Output Option: SAE B 2 or 4-Bolt Flange, SAE BB Shaft (1" 15T) (AF)
  • Intermittent Torque: 201-300 lb-ft (301-400 Nm)
  • Output Power: 46-55 HP (31-40 kW)
  • Shaft Power: 24 HP at 500 RPM, 48 HP at 1000 RPM (18 kW at 500 RPM, 36 kW at 1000 RPM)
  • Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Tremec, Other manual transmissions with 8-bolt PTO aperture

Additional Information

Chelsea PTO 489 Series Model Break Down
