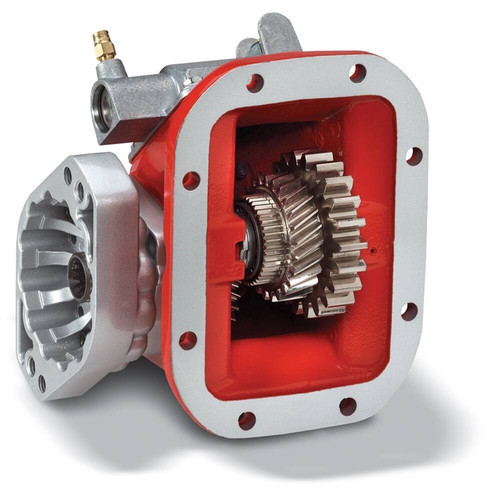

The Chelsea 489XLAHX-U5SQ or 489XLAHXU5SQ is a 489 Series Power Take-Off assembly built for manual transmissions with an 8-bolt PTO mounting opening, including Eaton/Fuller, Volvo/Mack, and Tremec applications. The one-piece cast iron housing bolts directly to the transmission without an adapter plate, eliminating an extra potential leak path. This unit uses an air shift with a PTO/dump pump combo valve and carries an SAE B 4-bolt flange output with a 7/8" 13-tooth SAE B shaft. Intermittent torque rating for the 489 Series is 201-300 lb-ft; the 489 uses tapered bearings rather than needle bearings for greater load-bearing capability. Internal parts share commonality with the Chelsea 442 Series. Call us to confirm proper fit for your transmission and application.
Features
489 Series 8-bolt one-piece cast iron housing mounts directly to transmission, no adapter plate required
Air shift with a PTO/dump pump combo valve; electric over air shift option also available in the 489 Series
SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque rating 201-300 lb-ft (301-400 Nm) for the 489 Series
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the Chelsea 442 Series for simplified servicing
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt (direct mount, no adapter plate)
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: L (25/34)
- Input Gear Designator: AH
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift with PTO/Dump Pump Combo Valve (with Kick-Out, without Neutral Spring Return) (U)
- Assembly Arrangement: 5
- Output Option: SAE B 4-Bolt Flange, SAE B Shaft (7/8" 13T) (SQ)
- INTERMITTENT TORQUE (Series): 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings)
- Output Power: 46-55 HP / 31-40 kW
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Tremec, and other manual transmissions with 8-bolt aperture
Additional Information
Parts manual and diagrams: Chelsea 489 Series PTO parts list with prices
