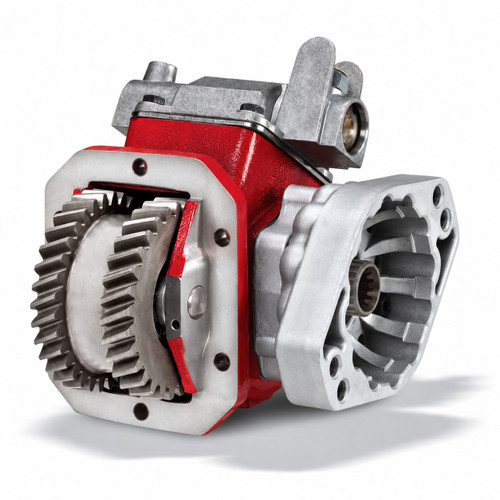

Stock photo not actual item

489XLAHX-V5RB Chelsea PTO Assembly

Chelsea

Listing Price: $2,788.29
Sale Price: $1,533.56

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489XLAHXV5RB
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series PTO Assembly, part number 489XLAHX-V5RB or 489XLAHXV5RB, is an 8-bolt mount unit designed for Eaton/Fuller, Volvo, and Mack transmissions, as well as other compatible applications. Shift type is air shift. The output is a rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Intermittent torque rating is 250 lb-ft (339 Nm), confirm actual torque requirements against the Chelsea application pages for your specific installation. Shaft power output reaches 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, simplifying sourcing for repairs. Kit-style construction makes field servicing straightforward. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

8-bolt mounting type for Eaton/Fuller, Volvo/Mack, and other compatible transmissions
Air shift
Rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque up to 250 lb-ft (339 Nm) - verify actual rating in Chelsea application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style construction with internal parts common to the Chelsea 442 Series for easier servicing

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt
  • Mounting Option: Standard Mount (X)
  • Gear Ratio Code: L (25/34)
  • Input Gear Designator: AH
  • Lube Option: No Pressure Lube (X)
  • Shift Option: Air Shift without Installation Kit (V)
  • Assembly Arrangement: 5
  • Output Option: Rotatable SAE B 4-Bolt Flange, SAE B Shaft (7/8" 13T) (RB)
  • Intermittent Torque: 250 lb-ft / 339 Nm (Check application pages for actual torque ratings)
  • Output Power: 46-55 HP / 31-40 kW
  • Shaft Power: 500 RPM: 24 HP (18 kW) | 1,000 RPM: 48 HP (36 kW)
  • Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, Other

Additional Information

Chelsea PTO 489 Series Model Break Down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
