Chelsea PTO Assembly P/N: 489XRAHX-A5RF or 489XRAHXA5RF

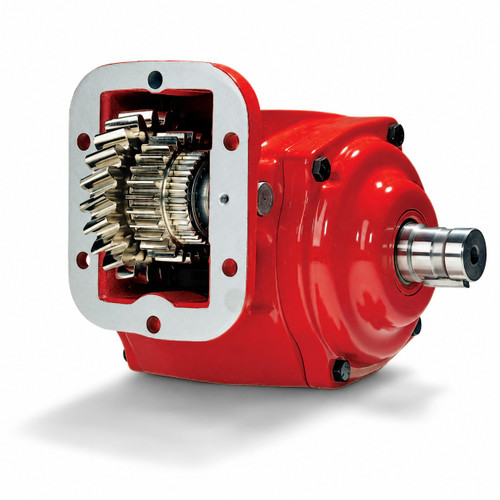

Stock photo not actual item

489XRAHX-A5RF Chelsea PTO Assembly

Chelsea

Listing Price: $3,234.18
Sale Price: $1,778.80

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489XRAHXA5RF
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series Power Take-Off Assembly, part number 489XRAHX-A5RF or 489XRAHXA5RF, mounts directly to an 8-bolt transmission opening on compatible manual transmissions including Eaton Fuller, Volvo/Mack, and others. A one-piece cast iron housing eliminates the need for an adapter plate, reducing potential leak paths. Output shaft is a 1" 15-tooth SAE BB shaft on a rotatable SAE B 2-bolt flange. The 489 Series delivers the same intermittent torque capacity as the 442 Series at 250 lb-ft (339 Nm), with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Strong tapered bearings replace needle bearings for greater load-bearing capability. Call us to confirm proper fit for your transmission and application.

Features

8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Air shift with electric-over-air shift option available in the 489 Series
Rotatable SAE B 2-bolt flange with a 1" 15-tooth SAE BB shaft
Intermittent torque rating: 250 lb-ft (339 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Tapered bearings (not needle bearings) for greater load capacity
Kit-style design with internal parts common to the Chelsea 442 Series simplifies service

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt
  • Mounting Option: Standard Mount (X)
  • Gear Ratio Code: R (22/24)
  • Input Gear Designator: AH
  • Lube Option: No Pressure Lube (X)
  • Shift Option: Air Shift (A)
  • Assembly Arrangement: 5
  • Output Option: Rotatable SAE B 2-Bolt Flange, SAE BB Shaft (1" 15T) (RF)
  • Intermittent Torque: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
  • Continuous Torque: De-rate intermittent torque rating by 30% - Check Application Pages for Actual Torque Ratings
  • Output Power: 46-55 HP (31-40 kW)
  • Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
  • Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture

Additional Information

Chelsea PTO 489 Series Model Break Down

Parts manual and diagrams: Chelsea 489 Series PTO parts list with prices

!
