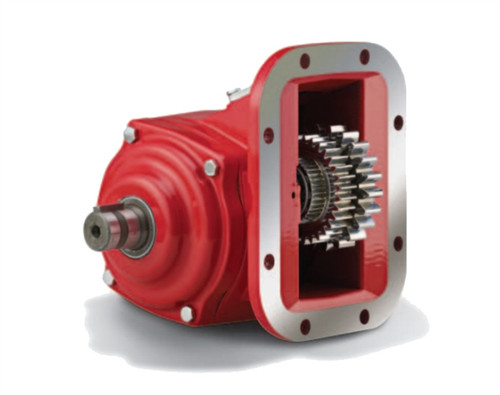

The Chelsea 489 Series Power Take-Off, part number 489XRAHX-V6XK or 489XRAHXV6XK, is an 8-bolt mount PTO designed for most manual transmissions including Eaton Fuller, Mack, and Tremec. The one-piece cast iron housing bolts directly to the 8-bolt transmission opening, eliminating the adapter plate and its potential leak path. Intermittent torque capacity for the 489 Series is 250 lb-ft (339 Nm); for continuous duty, apply the 30% de-rate per application page ratings. The 1-1/4" round output shaft with key and wire/cable mechanical shift make this unit straightforward to integrate. Shaft power output is 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, and the kit-style design simplifies field service. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt one-piece cast iron housing mounts directly to compatible manual transmissions - no adapter plate required
Wire/cable mechanical shift; electric-over-air shift option also available
1-1/4" round output shaft with key
Intermittent torque rating: 250 lb-ft (339 Nm) per 489 Series application data
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style construction with internal parts common to the Chelsea 442 Series for easier servicing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt
- SHIFT TYPE: Wire/Cable Mechanical
- OUTPUT SHAFT TYPE: 1-1/4" Round with Key
- INTERMITTENT TORQUE: 250 lb-ft / 339 Nm (Check Application Pages for Actual Torque Ratings)
- CONTINUOUS TORQUE: De-rate intermittent rating by 30% (Check Application Pages for Actual Torque Ratings)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- SHAFT POWER: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
- TRANSMISSION COMPATIBILITY: Eaton Fuller, Mack, Tremec, Volvo, and other manual transmissions with 8-bolt PTO aperture
- LUBRICANT: X = No Pressure Lube, P = Pressure Lube
