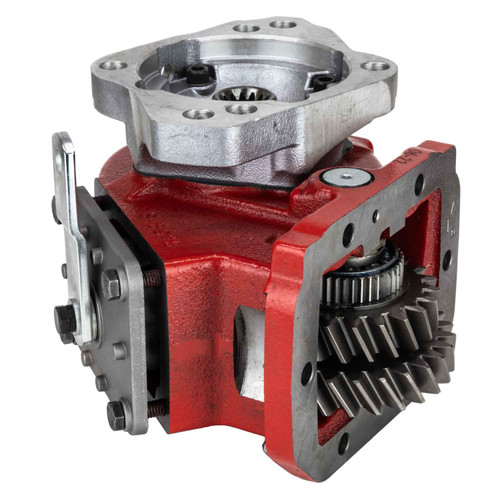

Chelsea 489 Series PTO Assembly 489XRAHX-W3XD or 489XRAHXW3XD fits Eaton/Fuller, Volvo/Mack, and other compatible transmissions via an 8-bolt mounting pattern. This unit uses wire/cable mechanical shift and delivers up to 46-55 HP (31-40 kW) output power, with intermittent torque rated at 250 lb-ft (339 Nm) - check application pages for actual torque ratings specific to your installation. The output shaft is a 1-1/4" round (keyed option available). Shaft power output is 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, simplifying service and parts stocking. Kit-style construction makes field service straightforward. Call us to confirm proper fit for your application.
Features
8-bolt mounting pattern compatible with Eaton/Fuller, Volvo/Mack, and other transmissions
Wire/cable mechanical shift; electric-over-air shift option also available
1-1/4" round output shaft (keyed option available)
Intermittent torque up to 250 lb-ft (339 Nm) - verify actual rating on Chelsea application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style assembly with internal parts common to Chelsea 442 Series for easier servicing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt
- SHIFT TYPE: Wire/Cable Mechanical (Electric over Air option available)
- OUTPUT SHAFT TYPE: 1-1/4" Round; 1-1/4" Round with Key
- OUTPUT POWER: 46-55 HP (31-40 kW)
- INTERMITTENT TORQUE: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
- SHAFT POWER: 500 RPM: 24 HP (18 kW); 1,000 RPM: 48 HP (36 kW)
- TRANSMISSION MANUFACTURER: Eaton/Fuller, Volvo/Mack, Other
- LUBRICANT: X = No Pressure Lube; P = Pressure Lube
