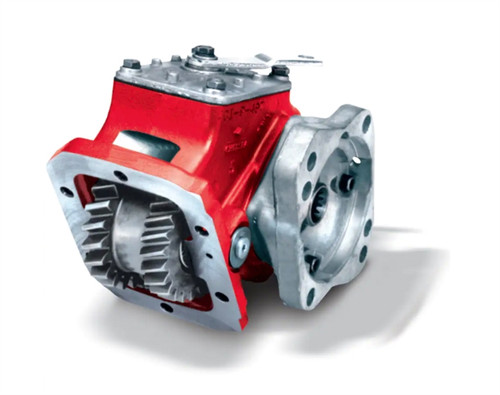

Stock photo not actual item

489ZHDAX-H6XD Chelsea PTO Assembly

Chelsea

Listing Price: $2,160.45
Sale Price: $1,188.25

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489ZHDAXH6XD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series Power Take-Off Assembly, part number 489ZHDAX-H6XD or 489ZHDAXH6XD, mounts directly to an 8-bolt transmission opening. The one-piece cast iron housing eliminates the need for an adapter plate, removing a potential leak path compared to designs that require one. This unit uses tapered bearings rather than needle bearings for greater load-bearing capability. The 489 Series delivers intermittent torque consistent with the 442 Series at 250 lb-ft; this unit has no shift assembly (ordered without a shifter) and a 1-1/4" round output shaft. Shaft power is rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, simplifying parts sourcing and service. Fits vocational applications including utility trucks, dump trucks, snow and ice removal, and fire and rescue equipment. Call us to confirm proper fit for your transmission.

Features

8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
No shift assembly (ordered without a shifter); electric-over-air shift option available in the 489 Series
Intermittent torque rating consistent with 442 Series at 250 lb-ft (339 Nm) - check application pages for actual rating
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
1-1/4" round output shaft with key
Internal parts common to Chelsea 442 Series; kit-style design simplifies service

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt direct to transmission (no adapter plate)
  • Mounting Option: Deep Mount (Z)
  • Gear Ratio Code: H (23/35)
  • Input Gear Designator: DA
  • Lube Option: No Pressure Lube (X)
  • Shift Option: No Shift Assembly (H)
  • Assembly Arrangement: 6
  • Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)
  • Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
  • Continuous Torque: De-rate intermittent torque rating by 30% (check application pages for actual torque ratings)
  • Output Power: 46-55 HP / 31-40 kW
  • Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
  • Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Tremec, and other 8-bolt manual transmissions

Additional Information

Chelsea PTO 489 Series Model Break Down
