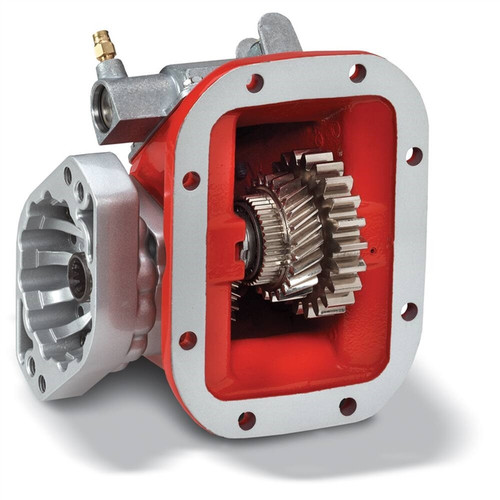

The Chelsea 489ZLDAX-V5XQ or 489ZLDAXV5XQ is a 489 Series Power Take-Off assembly built for 8-bolt manual transmission openings on Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The one-piece cast iron housing bolts directly to the transmission face, eliminating the adapter plate used on some other configurations and reducing potential leak paths. Shift is air shift. The output shaft is a 7/8" 13-tooth SAE B shaft on an SAE B 2 or 4-bolt flange, rotated 90 degrees. Intermittent torque capacity for the 489 Series is 250 lb-ft (339 Nm); shaft power runs 24 HP at 500 RPM and 48 HP at 1,000 RPM, with output power in the 46-55 HP range. Internal parts are common with the Chelsea 442 Series. Call us to confirm proper fit for your application.
Features
489 Series 8-bolt one-piece cast iron housing mounts directly to compatible manual transmission openings, no adapter plate required
Air shift type
SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft, rotated 90 degrees
Intermittent torque rating of 250 lb-ft (339 Nm) for the 489 Series; shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Internal parts are common to the Chelsea 442 Series, simplifying parts sourcing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt
- MOUNTING OPTION: Deep Mount (Z)
- GEAR RATIO CODE: L (25/34)
- INPUT GEAR DESIGNATOR: DA
- LUBE OPTION: No Pressure Lube (X)
- SHIFT OPTION: Air Shift without Installation Kit (V)
- ASSEMBLY ARRANGEMENT: 5
- OUTPUT OPTION: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T), Rotated 90 Degrees (XQ)
- INTERMITTENT TORQUE: 250 lb-ft / 339 Nm (Check Application Pages for Actual Torque Ratings)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- SHAFT POWER: 24 HP at 500 RPM, 48 HP at 1,000 RPM (18 kW at 500 RPM, 36 kW at 1,000 RPM)
- TRANSMISSION COMPATIBILITY: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
