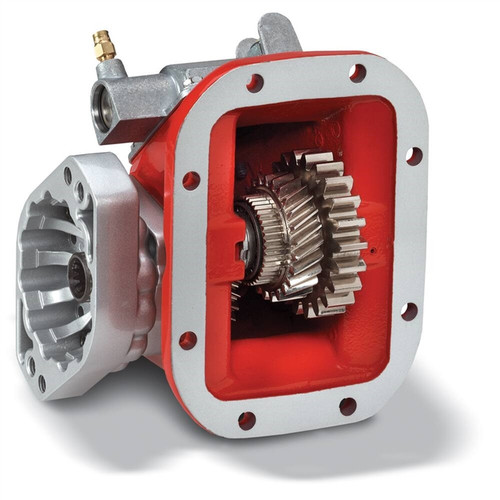

The Chelsea 489 Series Power Take-Off Assembly, part number 489ZQDAX-A3XK or 489ZQDAXA3XK, mounts directly to 8-bolt transmission openings on Eaton Fuller, Volvo, Mack, and other compatible manual transmissions without an adapter plate. The one-piece cast iron housing delivers the same intermittent torque capacity as the 442 Series, rated at 201-300 lb-ft. Shift is wire/cable mechanical. The 1-1/4" round output shaft (with key) is driven by tapered bearings rather than needle bearings for greater load capacity. Output power reaches 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal parts are common to the Chelsea 442 Series, simplifying shop-level service. Call us to confirm proper fit for your transmission and application.
The Chelsea 489 Series PTO is suited for aerial equipment, utility trucks, dump truck and trailer, snow and ice removal, and fire and rescue applications. The integral 8-bolt housing eliminates the need for an adapter plate, removing a potential leak path compared to designs that require one. Tapered bearings replace needle bearings at the output for improved load-bearing capability. The 489 Series offers 27 output options, including a 360-degree rotatable flange, and 11 internal speed ratios. For parts and service documentation, Parker publishes the 489 Series Parts List (HY25-2442-M1_US) and the Chelsea Service Manual (HY25-6489-M1/US).
Features
8-Bolt direct-mount cast iron housing fits Eaton Fuller, Volvo, Mack, and other manual transmissions with 8-bolt PTO apertures
Wire/cable mechanical shift; electric-over-air shift option also available in the 489 Series
1-1/4" round output shaft with key; greaseable output options to reduce spline fretting and corrosion
Intermittent torque rating: 201-300 lb-ft (301-400 Nm) for the 489 Series
Shaft output power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the Chelsea 442 Series for straightforward servicing
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable Mechanical
- Output Shaft Type: 1-1/4" Round with Key
- Intermittent Torque: 201-300 lb-ft (301-400 Nm) - Check Application Pages for Actual Torque Ratings
- Continuous Torque: De-rate torque rating 30% - Check Application Pages for Actual Torque Ratings
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- Lubricant: X = No Pressure Lube, P = Pressure Lube
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
Additional Information
The Chelsea 489 Series PTO is suited for aerial equipment, utility trucks, dump truck and trailer, snow and ice removal, and fire and rescue applications. The integral 8-bolt housing eliminates the need for an adapter plate, removing a potential leak path compared to designs that require one. Tapered bearings replace needle bearings at the output for improved load-bearing capability. The 489 Series offers 27 output options, including a 360-degree rotatable flange, and 11 internal speed ratios. For parts and service documentation, Parker publishes the 489 Series Parts List (HY25-2442-M1_US) and the Chelsea Service Manual (HY25-6489-M1/US).
