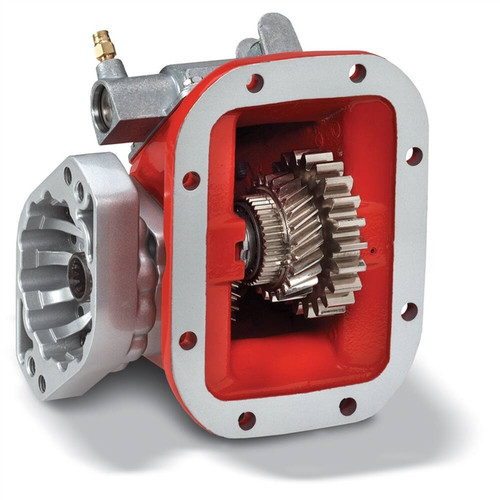

The Chelsea 489ZRDAX-A5XQ or 489ZRDAXA5XQ is a 489 Series Power Take-Off assembly designed for manual transmissions with an 8-bolt PTO mounting aperture, including Eaton/Fuller, Volvo/Mack, and other compatible applications. The one-piece cast iron housing bolts directly to the 8-bolt opening, eliminating the adapter plate that would otherwise add a potential leak path. The 489 Series carries an intermittent torque rating of 201-300 lb-ft (301-400 Nm), with shaft power of 24 HP at 500 RPM and 48 HP at 1,000 RPM. Shift is air shift. The output shaft is a 7/8" 13-tooth SAE B shaft on an SAE B 2 or 4-bolt flange, rotated 90 degrees. Tapered bearings replace the needle bearings found in some competing designs, providing greater load-bearing capacity. Internal parts share commonality with the Chelsea 442 Series. Call us to confirm proper fit for your transmission.
Features
8-bolt one-piece cast iron housing mounts directly to compatible manual transmissions, eliminating adapter plate leak paths
Air shift; electric-over-air shift option also available in the 489 Series
Intermittent torque rating: 201-300 lb-ft (301-400 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft, rotated 90 degrees
Tapered bearings for greater load capacity versus needle-bearing designs
Kit-style construction shares internal parts with the Chelsea 442 Series, simplifying service
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Mounting Option: Deep Mount (Z)
- Gear Ratio Code: R (22/24)
- Input Gear Designator: DA
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 5
- Output Option: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T), Rotated 90 Degrees (XQ)
- Intermittent Torque: 201-300 lb-ft (301-400 Nm)
- Shaft Power: 24 HP at 500 RPM; 48 HP at 1,000 RPM
- Output Power: 46-55 HP (31-40 kW)
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
