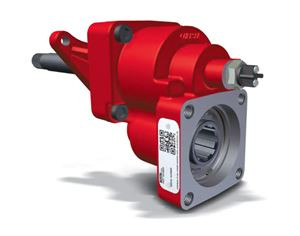

The Chelsea 511 Series PTO Assembly, part number 511XRACX-F-XK or 511XRACXFXK, is a rear-mount power take-off unit rated for a continuous torque of 590 lb-ft (800 Nm) with intermittent ratings beginning at 501 lb-ft. Output power reaches 56 HP at 500 RPM and 112 HP at 1,000 RPM (42 kW and 84 kW respectively). The assembly supports both pneumatic and mechanical shift operation and is compatible with transmissions from Eaton/Fuller, Volvo/Mack, ZF, and other manufacturers. Output shaft options include DIN 5462 and 4-Bolt DIN 5462 configurations. Zero gear backlash adjustment is required at installation. Call us to confirm proper fit for your specific transmission and application.
Features
Continuous torque rating: 590 lb-ft (800 Nm); intermittent rating starts at 501 lb-ft
Output power: 56 HP at 500 RPM, 112 HP at 1,000 RPM (42 kW / 84 kW)
Shift type: pneumatic or mechanical
Rear-mount configuration
Output shaft: DIN 5462 or 4-Bolt DIN 5462
Compatible transmissions: Eaton/Fuller, Volvo/Mack, ZF, and others
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic, Mechanical
- Continuous Torque: 590 lb-ft (800 Nm)
- Intermittent Torque: 501+ lb-ft (501+ Nm), see application pages for actual ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 56 HP / 42 kW at 500 RPM; 112 HP / 84 kW at 1,000 RPM
- Output Shaft Type: DIN 5462; 4-Bolt DIN 5462
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, ZF, Other
