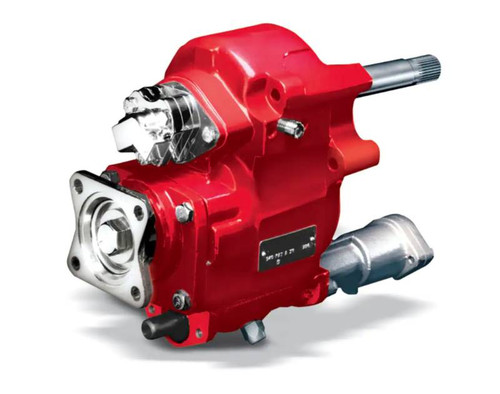

The Chelsea 541-MATAXK or 541MATAXK is a rear-mount power take-off assembly from the Chelsea 541 Series, designed for Eaton Fuller transmissions including the Advantage and UltraShift Series. It uses Chelsea's Thrushaft design, which requires only three fasteners for installation with no backlash adjustment. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, making it suitable for driveline-connected applications. Shift is lever/mechanical. Intermittent torque capacity reaches 400 lb-ft (check application pages for actual ratings). Output power is 56+ HP at the shaft, with shaft power measured at 38 HP (500 RPM) and 76 HP (1000 RPM). The rear-mount configuration frees up space under the vehicle for pumps or other driven equipment. Call us to confirm proper fit for your specific transmission and application.
The Chelsea 541 Series is suited for aerial devices, tow and recovery, dump trucks, service trucks, and ag feeders and spreaders. The Thrushaft rear-mount design positions the PTO behind the transmission countershaft, keeping the underside of the vehicle clear for direct-mount pumps or driveline runs to remote equipment. Three speed ratios are available across the 541 Series. Parker Chelsea lists the 541 Series as obsolete; stock on hand may be the last available supply for this configuration. Call Pro Gear and Transmission to confirm availability and verify the correct ratio and output configuration for your chassis.
Features
Fits most Eaton Fuller transmissions with a Thrushaft opening, including Advantage and UltraShift Series
Rear-mount design with only three fasteners required for installation, no backlash adjustment needed
Lever/mechanical shift type
1-1/2"-10T spline output shaft with 1410 series companion flange for driveline connection
Intermittent torque up to 400 lb-ft / 542 Nm (verify actual rating on application pages)
Shaft power: 38 HP at 500 RPM, 76 HP at 1000 RPM (28 kW / 57 kW respectively)
Tech Specs
- Transmission Manufacturer: Eaton/Fuller
- Mounting Type: Rear Mount
- Shift Type: Lever, Mechanical
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Intermittent Torque: 400 lb-ft / 542 Nm (Check Application Pages for Actual Torque Ratings)
- Output Power: 56+ HP, 51+ kW
- Shaft Power: 38 HP (500 RPM), 76 HP (1000 RPM), 28 kW (500 RPM), 57 kW (1000 RPM)
Additional Information
The Chelsea 541 Series is suited for aerial devices, tow and recovery, dump trucks, service trucks, and ag feeders and spreaders. The Thrushaft rear-mount design positions the PTO behind the transmission countershaft, keeping the underside of the vehicle clear for direct-mount pumps or driveline runs to remote equipment. Three speed ratios are available across the 541 Series. Parker Chelsea lists the 541 Series as obsolete; stock on hand may be the last available supply for this configuration. Call Pro Gear and Transmission to confirm availability and verify the correct ratio and output configuration for your chassis.
