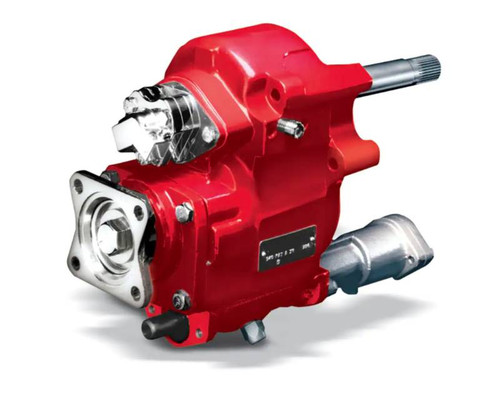

The Chelsea 541 Series Power Take-Off Assembly, part number 541-NATAXK or 541NATAXK, mounts on the rear countershaft of Eaton Fuller transmissions, including the Advantage and UltraShift Series. This unit uses Chelsea's Thrushaft® installation design, which requires only three fasteners and eliminates backlash adjustment, making installation faster than conventional rear-mount PTOs. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, suited for driveline-to-pump applications. Shift type is lever/mechanical. Intermittent torque capacity reaches up to 400 lb-ft (check application pages for actual torque ratings). Output power is 56+ HP, with shaft power rated at 38 HP at 500 RPM and 76 HP at 1,000 RPM. The rear-mount design provides additional product space beneath the vehicle. Call us to confirm proper fit for your specific Eaton Fuller transmission.
Features
Rear-mount design for Eaton Fuller transmissions, including Advantage and UltraShift Series
Thrushaft® installation requires only three fasteners with no backlash adjustment
Lever/mechanical shift type
1-1/2"-10T spline output shaft with 1410 series companion flange
Intermittent torque capacity up to 400 lb-ft (542 Nm) - check application pages for actual ratings
Rear-mount configuration provides added clearance and product space under the vehicle
Tech Specs
- Transmission Manufacturer: Eaton/Fuller
- Mounting Type: Rear Mount
- Shift Type: Lever, Mechanical
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Intermittent Torque: Up to 400 lb-ft / 542 Nm (Check Application Pages for Actual Torque Ratings)
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 38 HP (500 RPM), 76 HP (1,000 RPM) / 28 kW (500 RPM), 57 kW (1,000 RPM)
