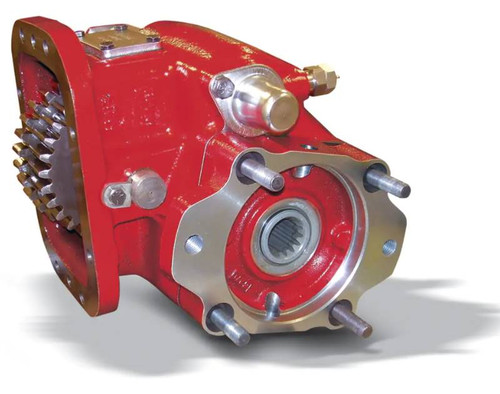

The Chelsea 823 Series Power Take-Off Assembly, part number 823XGAKW-M6XS or 823XGAKWM6XS, is an extra heavy-duty PTO built for high-torque applications including oil field, logging, pumper cleaner trucks, and mining equipment. It mounts via an 8-bolt aperture and fits automatic and manual transmissions from Allison, Eaton/Fuller, and Volvo/Mack. The output shaft is a 1-1/2" 10-tooth spline with a 1410 Series companion flange. Shift is lever/mechanical. The 823 Series delivers 48 HP at 500 RPM and 95 HP at 1000 RPM, with an intermittent torque rating of up to 500 lb-ft (678 Nm); check application pages for actual torque ratings specific to your installation. The cast iron housing uses tapered cone bearings on the output shaft for strong load-bearing capability. Call us to confirm proper fit for your application.
Features
Extra heavy-duty 823 Series design for oil field, logging, and high-torque mobile applications
8-bolt mounting aperture fits automatic and manual transmissions including Allison, Eaton/Fuller, and Volvo/Mack
Lever/mechanical shift type
1-1/2" 10-tooth spline output shaft with 1410 Series companion flange
Shaft power: 48 HP (500 RPM) and 95 HP (1000 RPM)
Intermittent torque: up to 500 lb-ft / 678 Nm (verify actual rating on Chelsea application pages for your transmission)
Tech Specs
- Intermittent Torque: 401-500 lb-ft / 501+ Nm; rated 500 lb-ft / 678 Nm (check application pages for actual torque ratings by transmission)
- Shift Type: Lever, Mechanical
- Output Power: 56+ HP / 51+ kW
- Transmission Compatibility: Eaton/Fuller, Allison, Volvo/Mack, Other
- Output Shaft Type: 1-1/2" - 10-tooth spline with 1410 Series companion flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP at 500 RPM / 95 HP at 1000 RPM (36 kW at 500 RPM / 71 kW at 1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
