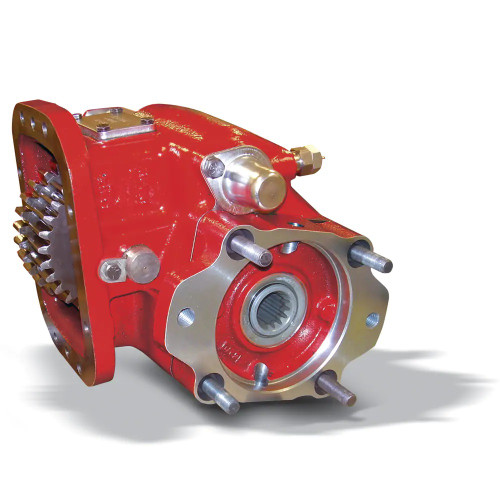

The Chelsea 823 Series Power Take-Off Assembly, part number 823XRAHX-V3XV or 823XRAHXV3XV, is an extra heavy-duty 8-bolt PTO designed for high-torque applications including oil field equipment, logging machinery, pumper cleaner trucks, and mining. It uses a lever/mechanical shift and mounts to Eaton/Fuller, Volvo/Mack, Allison, and other transmissions with an 8-bolt PTO aperture. The output shaft is a 1-1/2 inch, 10-tooth spline with a 1410 Series companion flange. Intermittent torque rating is 500 lb-ft (678 Nm); actual ratings vary by application. Shaft power reaches 95 HP at 1,000 RPM. Continuous operation is supported with a 30% de-rating. Call us to confirm proper fit for your specific transmission and application.
Features
Extra heavy-duty 8-bolt mounting, fits Eaton/Fuller, Volvo/Mack, Allison, and other transmissions
Lever/mechanical shift with air shift also available in the 823 Series
1-1/2 inch, 10-tooth spline output shaft with 1410 Series companion flange
Intermittent torque rating: 500 lb-ft (678 Nm) - check application pages for actual ratings
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Supports continuous operation with 30% de-rating; suited for oil field, logging, and pumper cleaner truck applications
Tech Specs
- Intermittent Torque: 500 lb-ft (Check Application Pages for Actual Torque Ratings), 678 Nm (Check Application Pages for Actual Torque Ratings)
- Shift Type: Lever, Mechanical
- Output Power: 56+ HP, 51+ kW
- Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, Allison, Other
- Output Shaft Type: 1-1/2 in. - 10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM), 36 kW (500 RPM), 71 kW (1,000 RPM)
- Continuous Operation: Yes, with 30% de-rating
