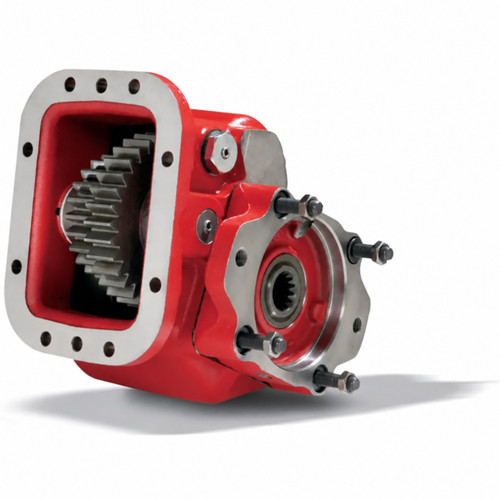

The Chelsea 852 Series Power Take-Off Assembly, part number 852XBAKP-F6XS or 852XBAKPF6XS, is a hydraulic PowerShift PTO built for Allison automatic transmissions with 8-bolt PTO mounting apertures. Output is rated at 56+ HP and 51+ kW, with shaft power reaching 95 HP at 1,000 RPM. The output shaft is a 1-1/2" 10-spline configuration fitted with a 1410 companion flange. Three gear ratios are available within the 852 Series to match driven-equipment requirements. Intermittent torque capacity is rated up to 500 lb-ft (678 Nm); consult Chelsea application pages for actual torque ratings for your specific configuration. Pressure lubrication is standard. Sold by Pro Gear and Transmission. Call us to confirm the correct ratio and configuration for your application.
Features
Hydraulic PowerShift (PowerShift) shift type for Allison automatic transmissions
8-bolt mounting configuration matches Allison automatic transmission PTO apertures
Output shaft: 1-1/2" - 10-spline with 1410 companion flange
Shaft power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
Intermittent torque rated up to 500 lb-ft (678 Nm) - check Chelsea application pages for your configuration
Pressure lubrication standard; three speed ratio options available in the 852 Series
Tech Specs
- Transmission Manufacturer: Allison
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: 1-1/2" - 10-Spline with 1410 Companion Flange
- Output Power: 56+ HP, 51+ kW
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
- Intermittent Torque: Up to 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
