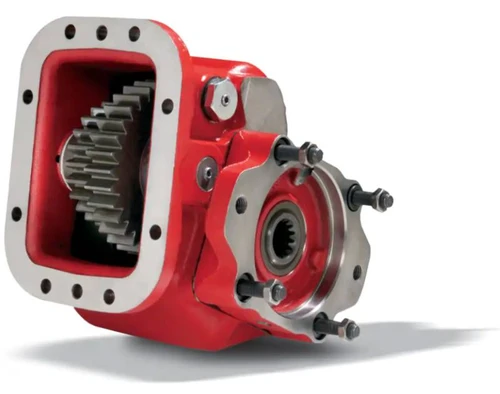

The Chelsea 852XGAKP-B6XS or 852XGAKPB6XS is an 8-bolt Hydraulic PowerShift Power Take-Off from the Chelsea 852 Series, engineered for Allison automatic transmissions. It delivers up to 500 lb-ft (678 Nm) intermittent torque and output power of 56+ HP (51+ kW). Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Pressure lubrication is standard, and the series offers three internal speed ratios. Typical applications include bulk transporter trucks, oil field equipment, and fire and rescue vehicles. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your specific Allison transmission configuration.
Features
Hydraulic PowerShift (PowerShift) shift type for Allison 8-bolt PTO mounting apertures
Intermittent torque rating up to 500 lb-ft (678 Nm) - check application pages for actual torque ratings
Output shaft: 1-1/2"-10T spline with 1410 series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Three internal speed ratios available within the 852 Series
Pressure lubrication standard
Tech Specs
- Transmission Manufacturer: Allison
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: up to 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- Output Power: 56+ HP / 51+ kW
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM) / 36 kW (500 RPM), 71 kW (1,000 RPM)
- Lubrication: Pressure Lubrication Standard
- Continuous Operation: Yes, with 30% de-rating
