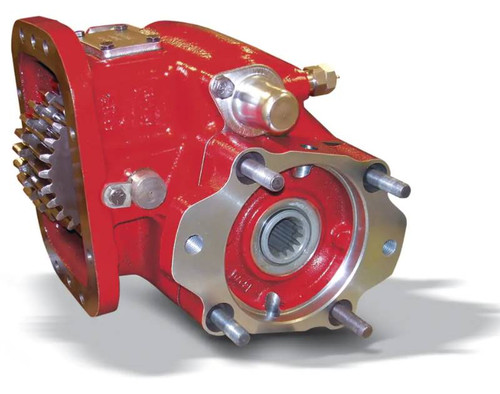

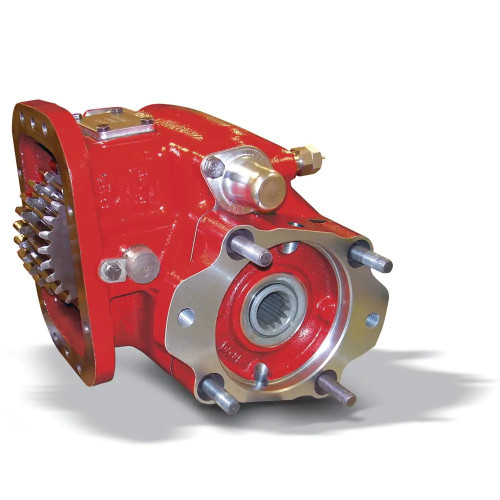

The Chelsea 863 Series Power Take-Off, part number 863XBAKX-Y5XV or 863XBAKXY5XV, is a forward and reverse driveline PTO built for 8-bolt transmission openings on manual transmissions including Eaton Fuller and Mack. Output is a 1410 Series companion flange, and shift operation is mechanical lever shift. Intermittent torque rating is 500 lb-ft (678 Nm); continuous operation is supported with a 30% de-rating applied. The cast iron housing and heavy-duty ball bearings on the output shaft make this unit a fit for demanding applications such as oil field winching and logging. Call us to confirm proper fit for your application.
Features
Forward and reverse operation for maximum-duty reversible applications
Lever shift, mechanical actuation
1410 Series companion flange output
Intermittent torque rating: 500 lb-ft (678 Nm)
Continuous operation supported with 30% de-rating
Fits transmissions with 8-bolt mounting apertures, including Eaton Fuller and Mack
Tech Specs
- Output Type: Driveline
- Mounting Type: 8-Bolt, Reversible
- Shift Type: Lever (Mechanical)
- Output Shaft Type: 1410 Series Companion Flange
- Intermittent Torque: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- Continuous Operation: Yes, with 30% de-rating
