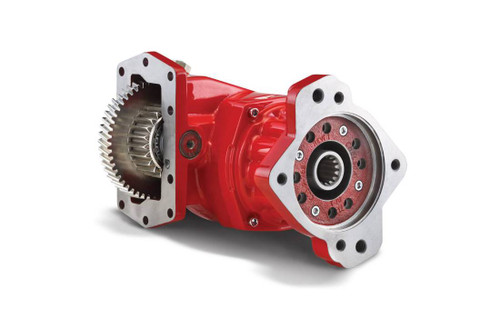

Genuine Chelsea PTO Assembly P/N: 870XAFJP-B5RZ or 870XAFJPB5RZ. Genuine Chelsea, we offer original, genuine parts straight from the manufacturer! Order today! For help please call one of our experts!
This product has been superseded and is no longer available. If ordered, you will receive 871XAFJPB5RZ.
Features
Compact housing height reduces clearance issues
Integral actuation valve simplifies plumbing and reduces installation time
Wet Spline Technology to extend PTO & pump shaft life
Electronic Overspeed Control (EOC) protects driven equipment
Tech Specs
- INTERMITTENT TORQUE:: 501+ lb-ft 501+ Nm
- MOUNTING TYPE: 10-Bolt
- OUTPUT SHAFT TYPE: 1410 Companion Flange 1-1/2" - 10T Spline w/ 1410 Flange
- SHIFT TYPE: Hydraulic PowerShift (Hydraulic)
- OUTPUT POWER: 56+ HP 51+ kW
- TRANSMISSION MANUFACTURER: Allison Other
- SHAFT POWER: 500 RPM: 64, 1000 RPM: 128 HP 500 RPM: 48, 1000 RPM: 95 kW
- WEIGHT: 56 lb 25 kg< /li>
- CONTINUOUS TORQUE: 908 (Check Application Pages for Actual Torque Ratings) Nm 670 (Check Application Pages for Actual Torque Ratings) lb-ft
Additional Information
Parts Manual: Chelsea 870 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
