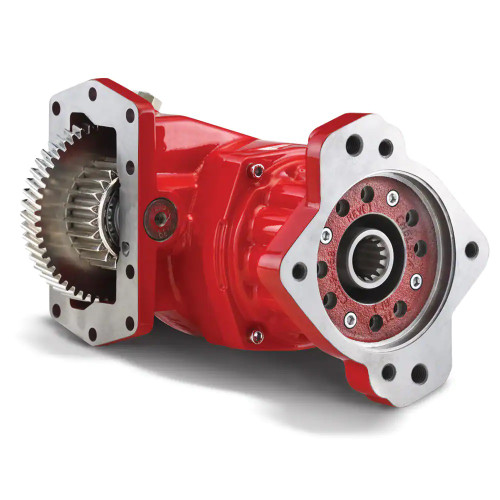

The Chelsea 871LAFJW-B5TY or 871LAFJWB5TY is a heavy-duty 871 Series Power Take-Off assembly built for demanding hydraulic and mechanical drive applications. Torque capacity reaches 670 lb-ft (908 N-m), and the series offers nine speed ratios covering both low and high speed ranges along with thirteen output configurations. A ductile iron bearing cap provides 117% greater strength than gray iron, and an O-ring sealing configuration reduces vibrational effects while improving clamp load retention. The compact housing height minimizes clearance concerns during installation. Available options include Quiet Gear input, SmartStart shock-load reduction, Electronic Overspeed Control (EOC), and a wet spline pump flange that extends both PTO and pump shaft service life. Call us to confirm proper fit for your transmission and application.
Features
Torque capacity up to 670 lb-ft / 908 N-m
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing configuration reduces vibrational effects and improves clamp load
Nine speed ratios including low and high speed ranges
Thirteen output configurations available
Electronic Overspeed Control (EOC) protects driven equipment; SmartStart option reduces shock load at start-up
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
