Chelsea PTO 871 Series Parts Manual

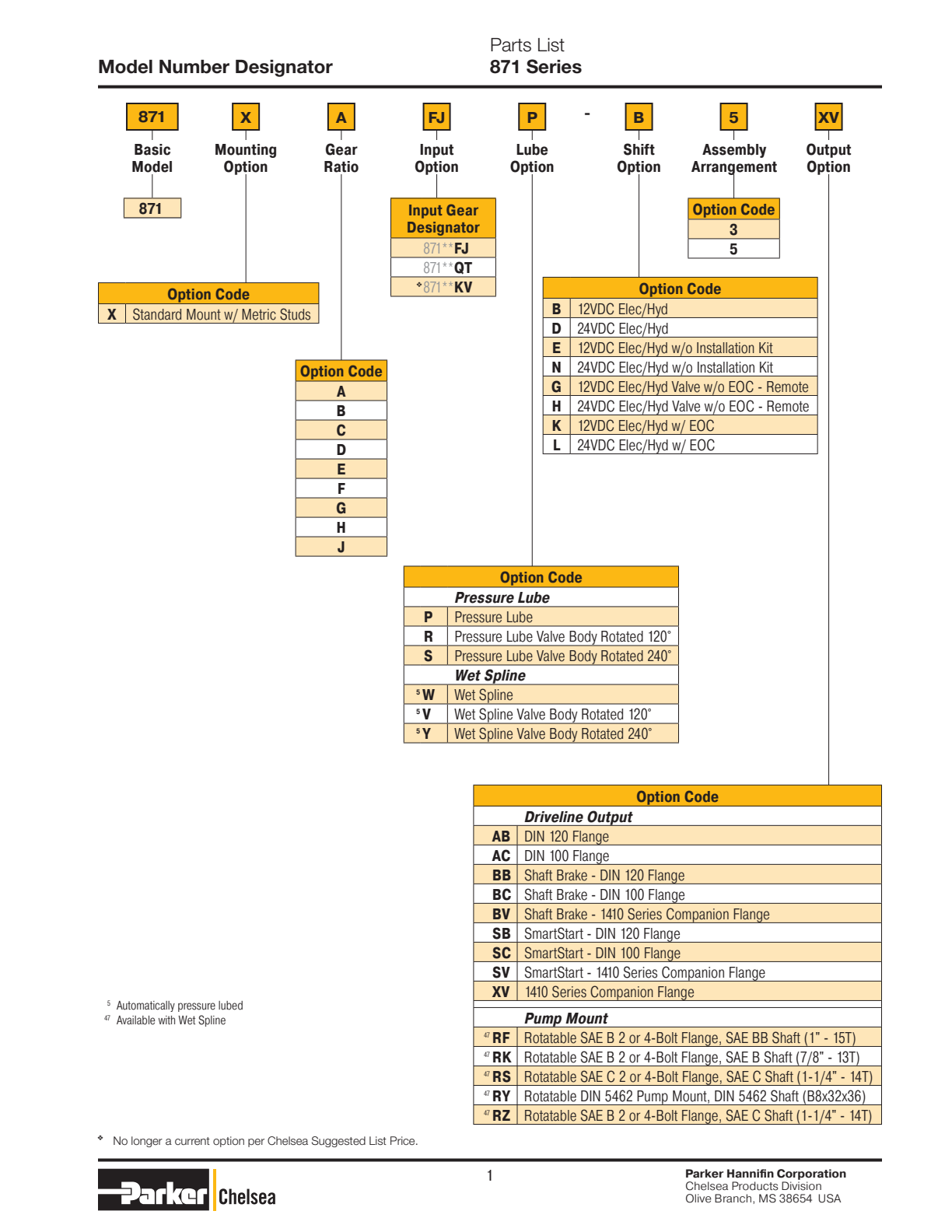

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Parts List Bill of Materials 871 Series

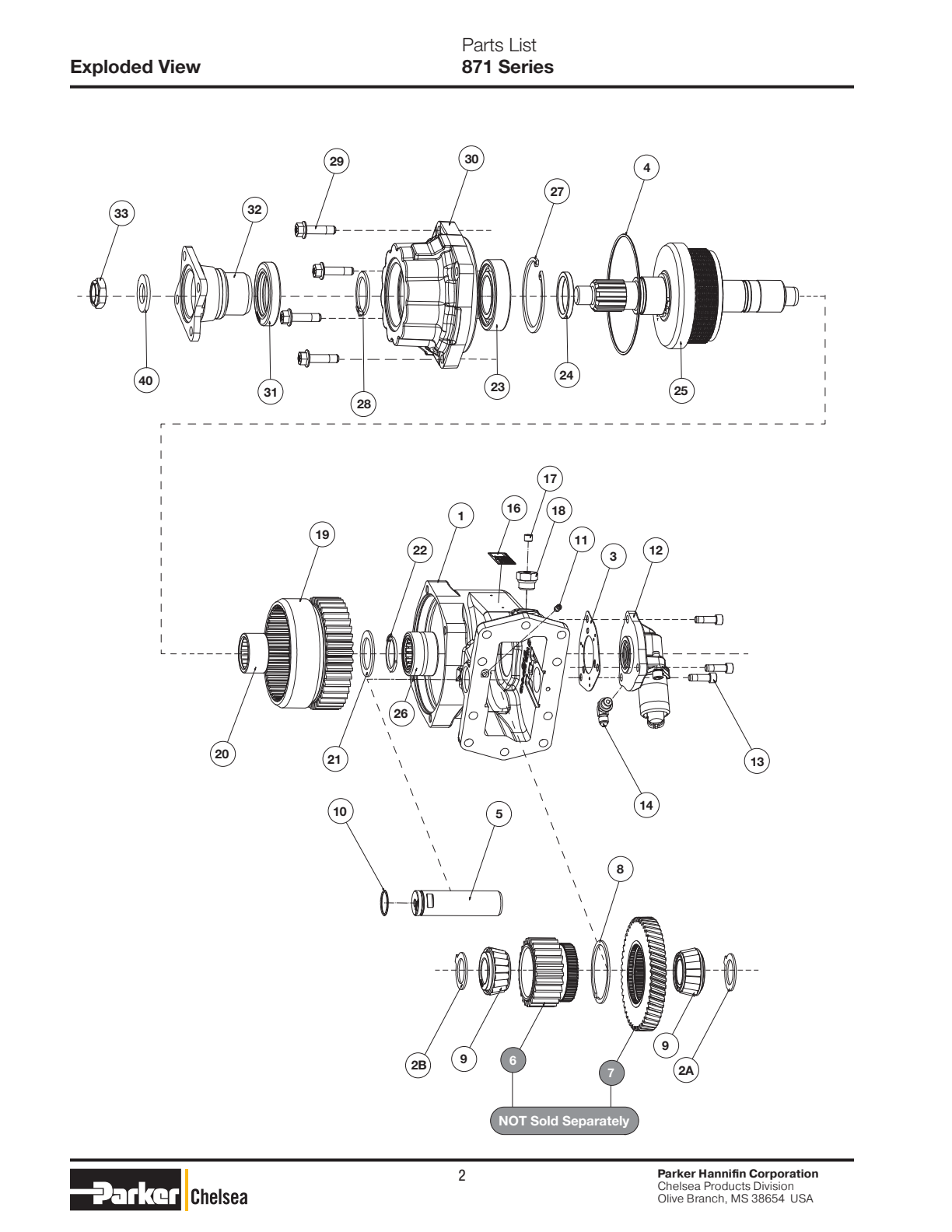

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P816 | Housing (5 Arrangement) (w/ 3/8" Bearing Cap Bolts & O-ring) | 1 or | $951.24 | Add to Cart | |
| 1P817 | Housing (3 Arrangement) (w/ 3/8" Bearing Cap Bolts & O-ring) | 1 | $951.24 | Add to Cart | ||
| 2A | 14P821 | Spacer (1 .191 " X 1 .750" X .080") | 1 | $43.74 | Add to Cart | |
| 2B | 14P821 | Spacer (1 .191 " X 1 .750" X .080") (thickness As Required) | 1 or | $43.74 | Add to Cart | |
| 14P822 | Spacer (1 .191 " X 1 .750" X .085") | 1 or | $43.74 | Add to Cart | ||
| 14P823 | Spacer (1 .191 " X 1 .750" X .090") | 1 or | $43.74 | Add to Cart | ||
| 14P824 | Spacer (1 .191 " X 1 .750" X .094") | 1 | $43.74 | Add to Cart | ||
| 3 | 22P112 | Gasket | 1 | $20.18 | Add to Cart | |
| 4 | 28P329 | O-ring (5 .487 " X .103") | 1 | $44.96 | Add to Cart | |
| 5 | 9P99 | Idler Shaft Not Sold Separately | 1 | $273.42 | Add to Cart | |
| 8 | 380064 | Lockring | 1 | $14.60 | Add to Cart | |
| 9 | 561026 | Tapered Cone Bearing (1 .181 " X .984") | 2 | $131.13 | Add to Cart | |
| 10 | 28P42 | O-ring (1 .051 " X .070") | 1 | $3.59 | Add to Cart | |
| 3784527 | Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | ||
| 12 | 33017512X | 12VDC Valve Cap Assembly (fj Qt Gear) | 1 or | $419.56 | Add to Cart | |
| 33017524X | 24VDC Valve Cap Assembly (fj Qt Gear) | 1 or | — | Call for availability | ||
| 32944212X | 12VDC Valve Cap Assembly (kv Gear) | 1 or | $838.17 | Add to Cart | ||
| 32944224X | 24VDC Valve Cap Assembly (kv Gear) | 1 | $1,403.57 | Add to Cart | ||
| 13 | 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 14 | 379486 | 90° Elbow (.438" -20) | 1 | $28.97 | Add to Cart | |
| 16 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 17 | 379231 | Pipe Plug (.125" -27) (w/o Eoc Only) | 1 | $1.50 | Add to Cart | |
| 18 | 379242 | Straight Adapter (.125" -27 X .750" -16) (w/o Eoc Only) | 1 | $22.23 | Add to Cart | |
| 20 | 560972 | Needle Roller Bearing Assembly (1 .500" X 1 .875" X 1 .000") | 1 | $32.22 | Add to Cart | |
| 21 | 31P70 | Thrust Washer (1 .507 " X 2 .167 " X .094") | 1 | $13.66 | Add to Cart | |
| 22 | 379746 | Lockring | 1 | $5.06 | Add to Cart | |
| 23 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 24 | 4P187 | Spacer (1 .776" X 2 .200" X .239") | 1 | $53.28 | Add to Cart | |
| 26 | 561047 | Needle Roller Bearing Assembly (1 .500" X 2 .062 " X 1 .250") | 1 | $156.82 | Add to Cart | |
| 27 | 378263 | Internal Lockring | 1 | $19.87 | Add to Cart | |
| 28 | 379555 | Lockring Continued On Next | 1 | $23.13 | Add to Cart | |
| 29 | 38056314 | Hex Flange Head Cap Screw (.375" -16 X 1 .500") | 4 | $7.14 | Add to Cart | |
| 30 | 21P932 | Bearing Cap (xv & Sv Output Only) (w/ 3/8" Bearing Cap Bolts & O-ring) Options Section Pages 11 -21 For More Options. | 1 | $253.94 | Add to Cart | |
| 31 | 28P211 | Oil Seal (3 .001 " X 2 .000" X .375") (xv & Sv Output Only) | 1 | $35.18 | Add to Cart | |
| 32 | 380503 | 1410 Series Companion Flange (xv & Sv Output Only) | 1 | $754.86 | Add to Cart | |
| 33 | 380486 | Stop Nut (.875" -14) (xv & Sv Output Only) | 1 | $60.21 | Add to Cart | |
| 34 | 379243 | Speed Sensor (w/ Eoc Only) | 1 | $229.65 | Add to Cart | |
| 28P171 | O-ring (.644" X .087 ") (w/ Eoc Only) | 1 | $4.88 | Add to Cart | ||
| 3795642 | Thread Cap (.438") | 1 | $1.23 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 69P30 | Caution Tag | 1 | — | Call for availability | ||
| 40 | 38007613 | Washer (.950" X 1 .762 " X .157 ") (xv Output Only) 41 -49 For Bill Of Materials For The Below Loose Parts. Service Kits | 1 | $3.51 | Add to Cart | |
| 32907160X | Bearing Kit (ab, Ac, Rk, Rf, Rs, Ry, Rz, Xv Output) | $1,081.61 | Add to Cart | |||
| 32907161X | Bearing Kit (ba, Bb, Bc, Bv Output) | — | No longer available — call for replacement | |||
| 32907179X | Gasket And Seal Kit | $318.33 | Add to Cart | |||
| 32907183X | Solenoid Valve O-ring Kit | $135.56 | Add to Cart | |||
| 329678X | Inner Hub Gear And Clutch Kit Stud Kits | $474.31 | Add to Cart | |||
| 717086X | Stud Kit (fj Gear) | $84.46 | Add to Cart | |||
| 7170117X | Stud Kit (kv Gear) Installation Instructions Kit | $78.00 | Add to Cart | |||
| 3289489X | Gasket & Installation Instructions Kit (all) Hose Assembly Kits | $42.19 | Add to Cart | |||
| 3291411X | Pressure Hose Assembly | 1 | $156.32 | Add to Cart | ||
| 3290574X | Lube & Clutch Hose Assembly (g & H Shift) | 2 | $45.49 | Add to Cart | ||
| 328075X | Exhaust Hose Assembly (g & H Shift) Continued On Next | 1 | $150.56 | Add to Cart | ||
| 32902412X | 12VDC Hyd Valve Installation Kit (fj Gear, B Shift) | $272.23 | Add to Cart | |||
| 32902424X | 24VDC Hyd Valve Installation Kit (fj Gear, D Shift) | $304.69 | Add to Cart | |||
| 32923712X | 12VDC Remote Hyd Valve Installation Kit (fj & Qt Gear, G Shift) | $763.42 | Add to Cart | |||
| 32923724X | 24VDC Remote Hyd Valve Installation Kit (fj & Qt Gear, H Shift) | $763.42 | Add to Cart | |||
| 32944512X | 12VDC Remote Hyd Valve Installation Kit (kv Gear, G Shift) | $904.45 | Add to Cart | |||
| 32944524X | 24VDC Remote Hyd Valve Installation Kit (kv Gear, H Shift) | $1,555.39 | Add to Cart | |||
| 329076X | 12VDC Installation Kit W/ Eoc (fj & Qt Gear, K & L Shift) | $152.30 | Add to Cart | |||
| 32907624X | 24VDC Installation Kit W/ Eoc (fj & Qt Gear, K & L Shift) | — | Call for availability | |||
| 329650X | Electronic Overspeed Controls (k & L Shift) | $1,358.05 | Add to Cart | |||
| 32944312X | 12VDC Installation Kit (kv Gear, B Shift) | $320.03 | Add to Cart | |||
| 32944324X | 24VDC Installation Kit (kv Gear, D Shift) | $291.36 | Add to Cart | |||
| 329444X | 12VDC & 24VDC Installation W/ Eoc Kit (kv Gear, K, L Shift) Conversion Kits | — | No longer available — call for replacement | |||
| 32917512X | 12VDC W/ Eoc Conversion Kit (fj Gear) | $1,568.56 | Add to Cart | |||
| 32917524X | 24VDC W/ Eoc Conversion Kit (fj Gear) | $675.81 | Add to Cart | |||
| 32935412X | 12VDC Remote Hyd Valve Conversion Kit | $930.53 | Add to Cart | |||
| 32935424X | 24VDC Remote Hyd Valve Conversion Kit | $473.86 | Add to Cart | |||
| 32944812X | 12VDC Conversion Kit (kv Gear) | — | No longer available — call for replacement | |||
| 32944824X | 24VDC Conversion Kit (kv Gear) Output Conversion Kits | — | No longer available — call for replacement |
Gear Ratio Options 871 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P14281 | 1X 5-P-1428 50 (1) 5-P-1545 24 2-P-891 40 | — | Call for availability | |||
| 5P142812X | 5-P-1428 50 (2) 5-P-1546 25 2-P-892 39 | $940.37 | Add to Cart | |||
| 5P14283X | 5-P-1428 50 5-P-1439 26 2-P-893 38 | $1,116.80 | Add to Cart | |||
| 5P14284X | 5-P-1428 50 5-P-1440 27 2-P-894 37 | $1,116.80 | Add to Cart | |||
| 5P14285X | 5-P-1428 50 5-P-1432 29 2-P-895 35 | $1,116.80 | Add to Cart | |||
| 5P14286X | 5-P-1428 50 5-P-1433 31 2-P-896 33 | $1,010.01 | Add to Cart | |||
| 5P14287X | 5-P-1428 50 5-P-1457 33 2-P-897 31 | $1,042.27 | Add to Cart | |||
| 5P14288X | 5-P-1428 50 5-P-1455 34 2-P-898 30 | $942.58 | Add to Cart | |||
| 5P14289X | 5-P-1428 50 5-P-1474 35 2-P-901 29 | $942.58 | Add to Cart | |||
| 5P14681 | 1X 5-P-1468 45 (1) 5-P-1545 24 2-P-891 40 | — | Call for availability | |||
| 5P146812X | 5-P-1468 45 (2) 5-P-1546 25 2-P-892 39 | — | Call for availability | |||
| 5P14683X | 5-P-1468 45 5-P-1439 26 2-P-893 38 | $951.79 | Add to Cart | |||
| 5P14684X | 5-P-1468 45 5-P-1440 27 2-P-894 37 | $951.77 | Add to Cart | |||
| 5P14685X | 5-P-1468 45 5-P-1432 29 2-P-895 35 | $951.77 | Add to Cart | |||
| 5P14686X | 5-P-1468 45 5-P-1433 31 2-P-896 33 | $951.77 | Add to Cart | |||
| 5P14687X | 5-P-1468 45 5-P-1457 33 2-P-897 31 | $951.77 | Add to Cart | |||
| 5P14688X | 5-P-1468 45 5-P-1455 34 2-P-898 30 | $951.77 | Add to Cart | |||
| 5P14689X | 5-P-1468 45 5-P-1474 35 2-P-901 29 | $951.77 | Add to Cart | |||
| 5P16631X | 5-P-1661X 50 5-P-1545 24 2-P-891 40 | $1,523.96 | Add to Cart | |||
| 5P16632X | 5-P-1661X 50 5-P-1546 25 2-P-892 39 | $1,523.96 | Add to Cart | |||
| 5P16633X | 5-P-1661X 50 5-P-1439 26 2-P-893 38 | $1,523.96 | Add to Cart | |||
| 5P16634X | 5-P-1661X 50 5-P-1440 27 2-P-894 37 | $1,523.96 | Add to Cart | |||
| 5P16635X | 5-P-1661X 50 5-P-1432 29 2-P-895 35 | $1,523.97 | Add to Cart | |||
| 5P16636X | 5-P-1661X 50 5-P-1433 31 2-P-896 33 | $1,523.96 | Add to Cart | |||
| 5P16637X | 5-P-1661X 50 5-P-1457 33 2-P-897 31 | $1,523.97 | Add to Cart | |||
| 5P16638X | 5-P-1661X 50 5-P-1455 34 2-P-898 30 | $1,523.96 | Add to Cart | |||
| 5P16639X | 5-P-1661X 50 5-P-1474 35 2-P-901 29 | $1,523.97 | Add to Cart | |||
| 5P1429 | $940.40 | Superseded by 5P142811XAdd to Cart |
Lube Options 871 Series Wet Spline Installation 871 Series RF, RK, RS, RY & RZ (SK-508 Rev C)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 385004 | 385004 Transmission (.438" -20) Fitting 36.00" 385006 (33 .50") (.438" -20) 16.75" 385006 (15 .25") | $10.91 | Add to Cart | |||
| 379627 | Male Branch Tee Rf 329700X Rk 329700X Rs 329744X To 379627 Ry 329742X Rz 329700X Note: Not All Output Options May Be Available On Series Listed Above 329699-1X Hose Assembly Flange 35-P-101 Gasket 21 -P-731 Rs 21 -P-769 | $20.06 | Add to Cart | |||
| 35P102 | Ry 21 -P-771 | $22.65 | Add to Cart | |||
| 28P245 | $45.00 | Add to Cart | ||||
| 35P111 | 4 X 378447-8 Socket Head Cap Screw Bearing Cap Torque 24-28 Lb-ft [33-39 N-m] 21 -P-934 (3/8" Bearing Cap Bolt Holes Used W/ O-ring) | $114.76 | Add to Cart |
Shift Options 871 Series Valve Cap Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 12 | 33017512X | 12VDC Valve Cap Assembly (fj Gear Only) | 1 or | $419.56 | Add to Cart | |
| 33017524X | 24VDC Valve Cap Assembly (fj Gear Only) | 1 or | — | Call for availability | ||
| 32944212X | 12VDC Valve Cap Assembly (kv Gear Only) | 1 or | $838.17 | Add to Cart | ||
| 32944224X | 24VDC Valve Cap Assembly (kv Gear Only) | 1 | $1,403.57 | Add to Cart | ||
| 34P357 | Valve Cap (330175-12X & 330175-24X) | 1 | — | Call for availability | ||
| 34P143 | Valve Cap (329442-12X & 329442-24X) | 1 | $114.96 | Add to Cart | ||
| 28P119 | Oil Seal (high Pressure) | 1 | $26.61 | Add to Cart | ||
| 378811 | Washer | 1 | $5.21 | Add to Cart | ||
| 378849 | Snap Ring | 1 | $2.12 | Add to Cart | ||
| 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 1 | $4.33 | Add to Cart | ||
| 379995 | Clamp (kv) Included With 379993 Valve. | 1 or | — | Call for availability | ||
| 380012 | Clamp (fj) Used With 38001 1 Valve | 1 | — | Call for availability | ||
| 380124 | Clamp (fj) Used With 380123 Valve | 1 | — | Call for availability | ||
| 38012312 | Hydraulic Valve (12VDC) (fj) (white Connector Top) (new Style) | 1 or | $222.19 | Add to Cart | ||
| 38012324 | Hydraulic Valve (24VDC) (fj) (black Connector Top) (new Style) | 1 or | $213.64 | Add to Cart | ||
| 380011 | -12 Hydraulic Valve (12VDC) (fj) (white Side Connector) N .l.a. Use 380123-12 | 1 or | — | Call for availability | ||
| 37999312 | Hydraulic Valve (12VDC) (kv) (white Connector) | 1 or | $1,051.13 | Add to Cart | ||
| 37999324 | Hydraulic Valve (24VDC) (kv) (black Connector) | 1 | $1,322.81 | Add to Cart | ||
| 32907183X | Hydraulic Solenoid Valve O-ring Kit Available Cap Assembly 329403X – Description | 1 | $135.56 | Add to Cart | ||
| 1 | 21P701 | Cap Seal | 1 or | $421.99 | Add to Cart | |
| 2 | 28P119 | Oil Seal (1 .379" X .875" X .250") | 1 | $26.61 | Add to Cart | |
| 3 | 378811 | Washer | 1 | $5.21 | Add to Cart | |
| 4 | 378849 | Lockring | 1 | $2.12 | Add to Cart |

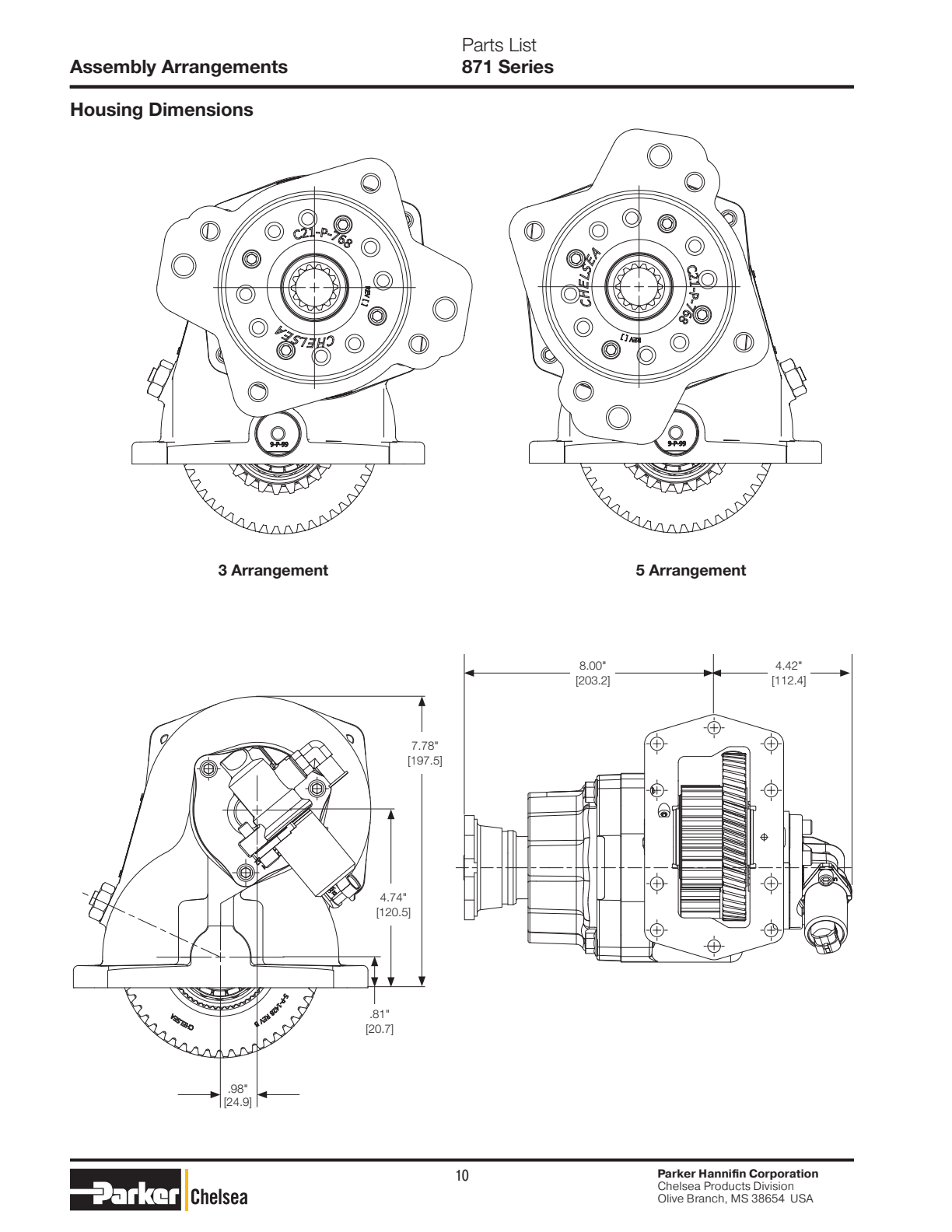

Output Options 871 Series Assembly Drive Shaft & Clutch 329724-*X
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3P1065 | Output Shaft 10T Straight (329724-1X) (ab, Ac, Xv) | 1 or | $761.33 | Add to Cart | |
| 3P1066 | Output Shaft (1 -1/4" 14T) (329724-2X) (rs, Rz) | 1 or | $750.06 | Add to Cart | ||
| 3P1067 | Output Shaft Din 8T (329724-3X) (ry) | 1 or | $761.33 | Add to Cart | ||
| 3P1126 | Output Shaft (7/8" 13T) (329724-4X) (rb, Rk) | 1 or | $790.98 | Add to Cart | ||
| 3P1127 | Output Shaft (1 " 15T) (329724-5X) (rf) | 1 or | $962.89 | Add to Cart | ||
| 3P1161 | Output Shaft 10T Straight (329724-8X) (sb, Sc, Sv) | 1 | $1,043.30 | Add to Cart | ||
| 2 | 28P285 | O-ring (1 .597 " X .103") | 2 | $12.64 | Add to Cart | |
| 3 | 28P178 | O-ring (4.484" X .138") | 1 | $41.94 | Add to Cart | |
| 4 | 380051 | Cylinder Clutch Back-up | 1 | — | No longer available — call for replacement | |
| 5 | 3801101 | Clutch Piston (early 871 Series Included Piston W/ Ball But Is No Longer Necessary) | 1 | $392.01 | Add to Cart | |
| 6 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 7 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 8 | 329678X | Gear & Plates Kit | 1 | $474.31 | Add to Cart | |
| 379485 | Friction Disc | 1 1 | $14.45 | Add to Cart | ||
| 380065 | Clutch Plate | 10 | $16.48 | Add to Cart | ||
| 2P858 | Inner Gear Hub | 1 | $186.14 | Add to Cart | ||
| 9 | 37P72 | Spring (2 .140" X 1 .729") | 1 | $26.96 | Add to Cart | |
| 10 | 4P213 | Spacer (1 .800" X 2 .070" X .330") | 1 | $3.54 | Add to Cart |
Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3P1072 | Output Shaft 10T Straight (329723X) (bb, Bc, Bv) | 1 | $647.72 | Add to Cart | |
| 2 | 28P244 | O-ring (1 .174" X .103") | 2 | $5.03 | Add to Cart | |
| 3 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 4 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 5 | 3291791X | Piston & Back-up Cylinder Assembly | 1 | $268.17 | Add to Cart | |
| 3793231 | Cylinder Clutch Back-up | 1 | $102.10 | Add to Cart | ||
| 3800571 | Piston Clutch Hydraulic | 1 | $85.93 | Add to Cart | ||
| 28P178 | O-ring (4.484" X .138") | 1 | $41.94 | Add to Cart | ||
| 6 | 329678X | Gear & Plates Kit | 1 | $474.31 | Add to Cart | |
| 379485 | Friction Disc | 1 1 | $14.45 | Add to Cart | ||
| 380065 | Clutch Plate | 10 | $16.48 | Add to Cart | ||
| 2P858 | Inner Gear Hub | 1 | $186.14 | Add to Cart | ||
| 7 | 37P39 | Spring (2 .552 " X 1 .985") | 1 | $6.55 | Add to Cart |
Output Options 871 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 329723X | Bb, Bc & Bv Assembly Drive Shaft & Clutch (3-P-1072 Shaft) | 1 | $996.04 | Add to Cart | |
| 2 | 22P151 | Gasket. | 1 | $15.38 | Add to Cart | |
| 3 | 21P884 | Bearing Cap (w/ 3/8" Bearing Cap Bolts) | 1 | $1,216.03 | Add to Cart | |
| 4 | 550010 | Bearing Ball (1 .378" X 2 .834" X .669") | 1 | $47.93 | Add to Cart | |
| 5 | 378895 | Lockring | 1 | $7.41 | Add to Cart | |
| 6 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 7 | 38056328 | Hex Flange Head Cap Screw (.375" -16 X 3 .500") | 4 | $11.07 | Add to Cart | |
| 8 | 380377 | Din 120 (bb) | 1 or | — | Call for availability | |
| 380378 | Din 100 (bc) | 1 or | $735.11 | Add to Cart | ||
| 380081 | 1410 Series Companion Flange (bv) | 1 | $558.76 | Add to Cart | ||
| 9 | 23P73 | Drag Brake Bearing Cap Spacer (w/ 3/8" Bearing Cap Bolts & O-ring) | 1 | $582.70 | Add to Cart | |
| 10 | 28P212 | Oil Seal (2 .506" X 1 .750" X .315") | 1 | $24.02 | Add to Cart | |
| 1 | 131P113 | Thrust Washer (1 .385" X 3 .125" X .125") | 1 | — | Call for availability | |
| 12 | 329410X | Brake Assembly | 1 | $387.98 | Add to Cart | |
| 13 | 379977 | Spring Pin | 1 | $3.85 | Add to Cart | |
| 14 | 4P130 | Washer | 1 | $67.32 | Add to Cart | |
| 15 | 4P186 | Spacer (1 .385" X 1 .750" X .365") | 1 | $31.43 | Add to Cart | |
| 16 | 3784357 | Hex Head Cap Screw (.625" -1 1 X 1 .250") | 1 | $11.93 | Add to Cart | |
| 17 | 28P244 | O-ring (1 .174" X .103") | 2 | $5.03 | Add to Cart | |
| 18 | 37P60 | Spring (2 .531 " X 2 .130" X .172 ") | 1 | $36.98 | Add to Cart | |
| 19 | 28P329 | O-ring (5 .487 " X .103") | 1 | $44.96 | Add to Cart |
Output Options 871 Series Bill of Materials Pump Mount (cont’d)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71373 | [68.6] 21 -P-934 Bearing Cap (wet Spline Only) | 1 | — | Call for availability | ||
| RS1810185 | 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 328170-216X Cap Screw Kit (378447-8 Qty. 4) 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) | 1 | — | Call for availability | ||
| 12705 | 21 -P-769 Pump Flange (ship Loose W/ Unit) 69-P-18 Tag (wet Spline Only) Wet Spline Loose Parts 329744X Wet Spline Loose Parts Kit .53" [13.5] 329699-1X Hose Assembly | 1 | — | Call for availability | ||
| 3153151 | 35-P-101 Wet Spline Bearing Cap Gasket | — | Call for availability |
Allison
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Caterpillar
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 385006 | (41.00") | $12.24 | Add to Cart | |||
| 380011-12 | Hydraulic Valve (12VDC) (fj) (white Side Connector) N.l.a. Use 380123-12 1 Or | $222.19 | Superseded by 38012312Add to Cart | |||
| 380011-24 | Hydraulic Valve (24VDC) (fj) (black Side Connector) N.l.a. Use 380123-24 1 Or | $213.64 | Superseded by 38012324Add to Cart | |||
| 31-P-113 | Thrust Washer (1.385" X 3.125" X .125") | 1 | $44.53 | Add to Cart | ||
| 379558 | Din 120 | 1 | $698.00 | Add to Cart | ||
| 379742 | Din 100 | 1 | $1,076.21 | Add to Cart | ||
| 561048 | Cylindrical Bearing Roller Assembly | $251.91 | Add to Cart | |||
| 329724-8X | Drive Shaft And Clutch Assembly | 1 | $1,374.62 | Add to Cart | ||
| 329724-5X | Drive Shaft And Clutch Assembly | 1 | $1,236.61 | Add to Cart | ||
| 21-P-933 | Bearing Cap 1 Or | $253.94 | Add to Cart | |||
| 28-P-267 | Oil Seal (2.627" X 1.750" X .312") | 1 | $66.05 | Add to Cart | ||
| 328170-216X | Cap Screw Kit (378447-8 Qty. 4) | 1 | $7.38 | Add to Cart | ||
| 35-P-101 | Bearing Cap Gasket Wet Spline | $37.17 | Add to Cart | |||
| 21-P-731 | Pump Flange (ship Loose W/ Unit) | 1 | $196.99 | Add to Cart | ||
| 329700X | Wet Spline Loose Parts Kit | 1 | $84.79 | Add to Cart | ||
| 329658X | Cover Kit | 1 | $157.74 | Add to Cart | ||
| 329724-4X | Drive Shaft And Clutch Assembly | 1 | $1,147.16 | Add to Cart | ||
| 21-P-934 | Bearing Cap (wet Spline Only) | 1 | $259.36 | Add to Cart | ||
| 329724-2X | Drive Shaft And Clutch Assembly | 1 | $1,402.52 | Add to Cart | ||
| 21-P-769 | Pump Flange (ship Loose W/ Unit) | 1 | $477.36 | Add to Cart | ||
| 69-P-18 | Tag (wet Spline Only) | 1 | $6.83 | Add to Cart | ||
| 329744X | Wet Spline Loose Parts Kit | 1 | $102.28 | Add to Cart | ||
| 329654X | Cover Kit | 1 | $157.74 | Add to Cart | ||
| 21-P-771 | Pump Flange (ship Loose W/ Unit) | 1 | $649.32 | Add to Cart | ||
| 329742X | Wet Spline Loose Parts Kit | 1 | $177.31 | Add to Cart | ||
| 329699-1X | Hose Assembly | 1 | $85.54 | Add to Cart | ||
| 379252 | Pto | $2.30 | Add to Cart | |||
| 12015378 | 90° Md: Hd: | — | Call for availability | |||
| 379265 | / 5 379486 | $3.21 | Add to Cart | |||
| 379280 | 2X 379486 In | $7.49 | Add to Cart | |||
| 379258 | To On | $5.11 | Add to Cart | |||
| 379700 | Tee Trans | $13.33 | Add to Cart | |||
| 380668X | Pn | $5.98 | Add to Cart | |||
| 378447-8 | Socket Head Cap Screw | $2.32 | Add to Cart | |||
| 3-P-1099 | Output Shaft (1" 15T) | 1 | $622.81 | Add to Cart | ||
| 3-P-1155 | Output Shaft | 1 | $368.82 | Add to Cart | ||
| 3-P-1070 | Output Shaft (1-1/4" 14T) | 1 | $688.51 | Add to Cart | ||
| 3-P-1071 | Output Shaft Din 8T | 1 | $688.51 | Add to Cart | ||
| 329659X | Cover Kit | 1 | $61.45 | Add to Cart | ||
| 35-P-74 | Shim Gasket | 1 | $7.13 | Add to Cart | ||
| 379451 | Pilot Screw (M10-1.5 X .984") | 2 | $7.23 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379453-10 | Cap Screw Fc (M10-1.5 X 1.378") | 8 | $6.86 | Add to Cart | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379812 | Male Connector (.438"-20) | 1 | $16.73 | Add to Cart | ||
| 380672 | Female Spade Connector | 3 | — | Call for availability | ||
| 329231X | Valve Connector Wire Assembly | 1 | $123.35 | Add to Cart | ||
| 379061 | Plastic Wire Tie | 6 | $1.46 | Add to Cart | ||
| 378881 | Rocker Switch | 1 | $111.97 | Add to Cart | ||
| 379257 | Electrical Speed Limiter Connector | 1 | $2.91 | Add to Cart | ||
| 379504 | Electrical Valve Connector | 1 | $52.22 | Add to Cart | ||
| 379449 | Male Connector (.438"-20 X .250"-18) | 1 | $13.18 | Add to Cart | ||
| 379900 | Fuse Holder Assembly | 1 | $5.99 | Add to Cart | ||
| 379254-17 | Electrical Wire Fork 14G | 1 | $18.76 | Add to Cart | ||
| 379686-1 | Hydraulic Solenoid Valve Shifter 12VDC | 1 | $473.29 | Add to Cart | ||
| 500357-7 | Lock Washer (.194" .337" .047") | 2 | $1.07 | Add to Cart | ||
| 500457-6 | Round Head Slotted Screw | $1.12 | Add to Cart | |||
| 379711 | Tee (.375"-24 .438"-20 .438"-20) | 1 | $157.76 | Add to Cart | ||
| 380010 | Union Female Sae Swivel Nut (.438"-20) | 1 | $17.47 | Add to Cart | ||
| 379131-1 | Pipe Reducer Bushing | $3.19 | Add to Cart | |||
| 75-P-46X | Wire And Connectors Kit | 1 | $27.77 | Add to Cart | ||
| 379061X | Plastic Wire Tie Assembly | 1 | — | Call for availability | ||
| 379005 | Indicator Light 24VDC | 1 | — | No longer available — call for replacement | ||
| 379686-2 | Solenoid Valve Hydraulic Shift 24VDC | 1 | $466.27 | Add to Cart | ||
| 75-P-53 | 24VDC Wire Harness Assembly | 1 | $207.54 | Add to Cart | ||
| 329446-24X | Remote Mount Valve Assembly 24VDC | 1 | $572.75 | Add to Cart | ||
| 378978 | Indicator Light 12VDC | 1 | $25.82 | Add to Cart | ||
| 379306 | Electrical Fork Terminal | 3 | $2.50 | Add to Cart | ||
| 379336 | Electrical Air Shifter Switch Bracket | 1 | $10.11 | Add to Cart | ||
| 379928 | Valve & Wire Connector | 1 | $47.11 | Add to Cart | ||
| 328923-10X | Speed Sensor Cable 10 Ft | 1 | — | No longer available — call for replacement | ||
| 20071-3 | Eoc Unit (nss) | 1 | — | Call for availability | ||
| 329446-12X | Remote Mount Valve Assembly 12VDC | 1 | $616.62 | Add to Cart | ||
| 329448X-12X | Eoc Conversion Kit (kv Gear) (871 Series) | — | Call for availability | |||
| 329448X-24X | Eoc Conversion Kit (kv Gear) (871 Series) | — | Call for availability | |||
| 329175-15X | 24VDC Eoc Conversion Kit | — | Call for availability | |||
| 329230X | Wire & Butt Connector | 1 | — | No longer available — call for replacement | ||
| 329403X | Seal Cap Assembly | 1 | $490.07 | Add to Cart | ||
| 329160-120X | Conversion Kit (xv To Sv) (871 Series) | $905.11 | Add to Cart | |||
| 329160-130X | Conversion Kit (xv To Ab) (871 Series) | $1,476.19 | Add to Cart | |||
| 329160-123X | Conversion Kit (xv To Ba) (871 Series) | $3,547.90 | Add to Cart | |||
| 329160-134X | Conversion Kit (xv To Ac) (871 Series) | $1,123.68 | Add to Cart | |||
| 329160-140X | Conversion Kit (xv To Bb) (871 Series) | — | No longer available — call for replacement | |||
| 329160-147X | Conversion Kit (xv To Sb) (871 Series) | — | No longer available — call for replacement | |||
| 329160-148X | Conversion Kit (xv To Sc) (871 Series) | — | No longer available — call for replacement | |||
| 329160-141X | Conversion Kit (xv To Bc) (871 Series) | — | No longer available — call for replacement | |||
| 329160-154X | Conversion Kit (xv To Rk Dry) (871 Series) | $740.80 | Add to Cart | |||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart | ||
| 329160-155X | Conversion Kit (xv To Rk Wet) (871 Series) | $1,030.08 | Add to Cart | |||
| 329160-158X | Conversion Kit (xv To Rs Dry) (871 Series) | $858.83 | Add to Cart | |||
| 329160-159X | Conversion Kit (xv To Rs Wet) (871 Series) | $1,078.75 | Add to Cart | |||
| 329160-156X | Conversion Kit (xv To Rf Dry) (871 Series) | $740.80 | Add to Cart | |||
| 329160-157X | Conversion Kit (xv To Rf Wet) (871 Series) | $1,043.49 | Add to Cart | |||
| 329160-160X | Conversion Kit (xv To Ry Dry) (871 Series) | $858.83 | Add to Cart | |||
| 329160-161X | Conversion Kit (xv To Ry Wet) (871 Series) | $1,202.19 | Add to Cart | |||
| 329160-163X | Conversion Kit (xv To Rz Wet) (871 Series) | $1,030.08 | Add to Cart | |||
| 68-P-18 | Wet Spline Tag | 1 | $4.50 | Add to Cart | ||
| 329160-162X | Conversion Kit (xv To Rz Dry) (871 Series) | $740.80 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 871 — every part in the manual, matched to our live inventory. We stock 240 of the 284 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
