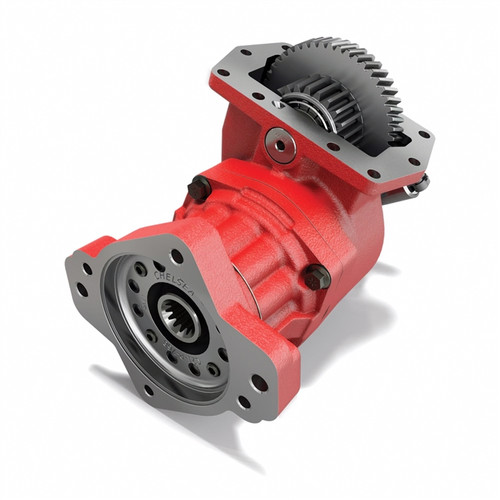

The Chelsea 871XAFJP-D3AB is a 10-bolt PowerShift (hydraulic) Power Take-Off from the 871 Series, designed for Allison-transmission applications. The 871 Series delivers continuous torque up to 670 lb-ft (908 N-m) with no derating required for continuous duty. Nine speed ratios and thirteen output configurations give installers a wide range of application flexibility. A ductile iron bearing cap rated 117% stronger than gray iron, combined with an O-ring sealing configuration between the housing and bearing cap, addresses the vibrational demands of modern engine designs. The compact housing profile reduces clearance conflicts during installation. Optional features include Wet Spline pump flange, SmartStart for reduced start-up shock load, Quiet Gear input, and Electronic Overspeed Control (EOC). The 871 Series replaces the earlier Chelsea 870 Series PTO. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt PowerShift (hydraulic shift) mounting for Allison transmissions
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing between housing and bearing cap reduces vibrational effects and improves clamp load
Continuous torque capacity up to 670 lb-ft (908 N-m), no continuous-duty derating required
Nine speed ratios and thirteen output options for broad application coverage
Optional Wet Spline pump flange, SmartStart, Quiet Gear input, and Electronic Overspeed Control (EOC)
Tech Specs
- Mounting: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Compatibility: Allison
- Continuous Torque Capacity: 670 lb-ft (908 N-m)
- Speed Ratios: Nine
- Output Options: Thirteen
- Lubrication: Pressure Lube (P) and Wet Spline (W) options
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Continuous Operation: Yes
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1000 RPM (48 kW at 500 RPM / 95 kW at 1000 RPM)
- Replaces: Chelsea 870 Series PTO
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
