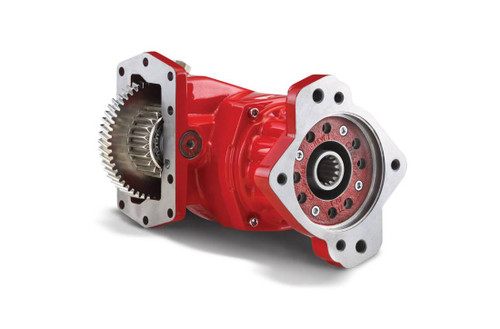

The Chelsea 871 Series Power Take-Off, part number 871XDFJP-D3XV or 871XDFJPD3XV, is a 10-bolt PowerShift (hydraulic) PTO designed for Allison-transmission applications. The 871 Series delivers continuous torque capacity up to 670 lb-ft (908 N-m) with no derating required for continuous-duty use. Nine speed ratios and thirteen output options cover a wide range of vocational needs, from fire and rescue pumper units to refuse trucks and truck cranes. Chelsea upgraded this series over the predecessor 870 Series with a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an optional Wet Spline pump flange to extend PTO and pump shaft service life. SmartStart and Quiet Gear input options are available within the 871 platform. Call us to confirm proper fit for your specific installation.
Features
10-bolt PowerShift (hydraulic) mounting, rated for Allison transmission applications
Continuous torque capacity up to 670 lb-ft (908 N-m) - no continuous-duty derating required
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing between housing and bearing cap reduces vibration effects and improves clamp load
Nine speed ratios and thirteen output options for broad application coverage
Wet Spline pump flange, SmartStart, Quiet Gear, and Electronic Overspeed Control (EOC) options available
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft (908 N-m) - check application pages for actual torque ratings
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1000 RPM
- Speed Ratios: Nine
- Output Options: Thirteen
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Lubrication: Pressure Lube and Wet Spline
- Continuous Operation: Yes
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
