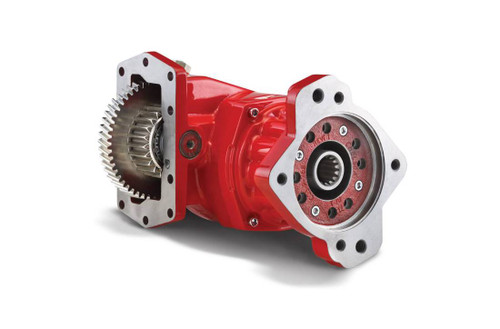

The Chelsea 871 Series Power Take-Off, part number 871XFFJP-D3BC or 871XFFJPD3BC, is a 10-bolt hydraulic PowerShift PTO designed for demanding continuous-duty applications. The 871 Series carries a series-rated torque capacity up to 670 lb-ft (908 N-m) with no derating required for continuous operation. Nine speed ratios and thirteen output options cover a wide range of installation requirements. The ductile iron bearing cap is 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing the effects of engine vibration. The compact housing profile limits clearance conflicts in tight installations. Optional features include Wet Spline pump flange for extended PTO and pump shaft life, SmartStart to reduce shock load at start-up, Quiet Gear input, and Electronic Overspeed Control (EOC) to protect driven equipment. The 871 Series is engineered for Allison transmissions. Call us to confirm the correct configuration for your application.
Features
10-bolt hydraulic PowerShift mounting for Allison transmissions
Ductile iron bearing cap, 117% stronger than gray iron
Series-rated continuous torque up to 670 lb-ft / 908 N-m, no derating required for continuous duty
Nine speed ratios and thirteen output options for broad application coverage
O-ring sealing configuration between housing and bearing cap reduces vibration effects and improves clamp load
Compact housing profile minimizes clearance issues; Wet Spline, SmartStart, Quiet Gear, and Electronic Overspeed Control (EOC) options available
Tech Specs
- Mounting: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Compatibility: Allison
- Continuous Torque (Series Rating): 670 lb-ft / 908 N-m
- Shaft Power (Series Rating): 64 HP at 500 RPM / 128 HP at 1,000 RPM
- Speed Ratios: Nine
- Output Options: Thirteen
- Lubricant System: Pressure Lube and Wet Spline
- Output Shaft Types Available: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types Available: SAE B Pump Flange, SAE C Pump Flange
- Continuous Operation: Yes
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
