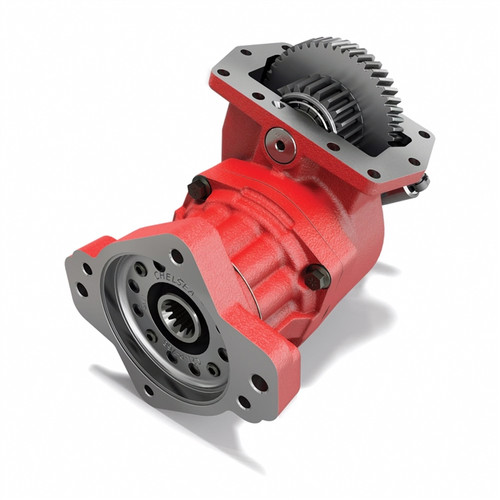

The Chelsea 871 Series Power Take-Off, part number 871XGFJW-D3RS or 871XGFJWD3RS, is a compact 10-bolt PowerShift (hydraulic) PTO designed for Allison transmissions. The 871 Series delivers continuous torque capacity up to 670 lb-ft (908 N-m) with no derating required for continuous duty applications. Nine speed ratios and thirteen output configurations give technicians a wide range of installation options. A ductile iron bearing cap, rated 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap address vibrational loads from modern engine designs. Optional Wet Spline pump flange, SmartStart, and Quiet Gear input round out the available configurations. The 871 Series is the only Chelsea PTO to combine all three of those high-demand options in a single platform. Call us to confirm the right configuration for your application.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmissions
Continuous torque capacity up to 670 lb-ft (908 N-m) with no continuous-duty derating
Nine speed ratios and thirteen output options for maximum installation flexibility
Ductile iron bearing cap is 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Wet Spline pump flange, SmartStart, and Quiet Gear input options available on a single platform
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft (908 N-m) - check application pages for actual torque ratings
- Speed Ratios: Nine
- Output Options: Thirteen
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1000 RPM (48 kW at 500 RPM / 95 kW at 1000 RPM)
- Continuous Operation: Yes
- Lubricant System: Pressure Lube and Wet Spline
- Available Options: Wet Spline pump flange, SmartStart, Quiet Gear input, Electronic Overspeed Control (EOC)
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
