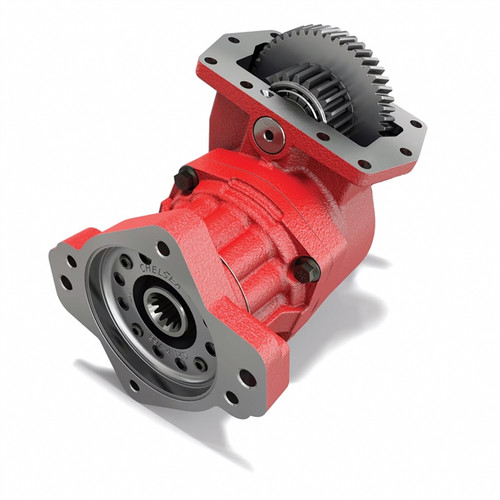

The Chelsea 878XAKVW-M5RF or 878XAKVWM5RF is a constant mesh Power Take-Off assembly from the Chelsea 878 Series, engineered to fit Allison and CAT 10-bolt transmissions. The 878 Series delivers up to 670 lb-ft of continuous torque in a compact package, with nine available speed ratios covering both low and high speed ranges. A ductile iron bearing cap rated 117% stronger than gray iron and an O-ring sealing configuration between the housing and bearing cap improve clamp load and reduce vibration-related damage. Rotatable, cast-iron flanges reduce interference clearance issues, and driveline outputs include a positive stop to prevent oil seal damage. The Wet Spline Lubrication option extends shaft life 7 to 10 times over standard configurations. A hydraulic hose is included. Call us to confirm proper fit for your application.
Features
Fits Allison and CAT 10-bolt transmissions
Constant mesh design with cast iron housing
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap reduces vibration effects and improves clamp load
Nine speed ratios including low and high speeds
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
Positive stop on driveline outputs eliminates oil seal damage from coupling
Hydraulic hose included
Tech Specs
- Transmission Compatibility: Allison and CAT 10-bolt
- Shift Type: Constant Mesh
- Continuous Torque Rating: 670 lb-ft (908 Nm) - check application pages for actual torque rating
- Output Shaft Options: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline
- Output Flange Options: 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Continuous Operation: Yes
- Lubrication: Pressure Lube or Wet Spline
- Speed Ratios: Nine ratios including low and high
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
