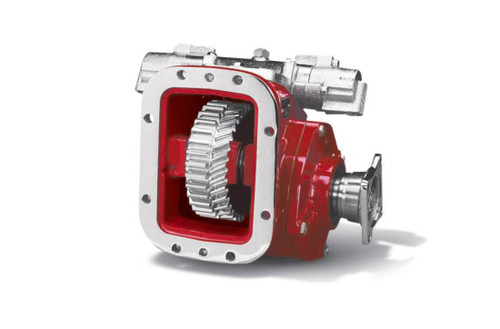

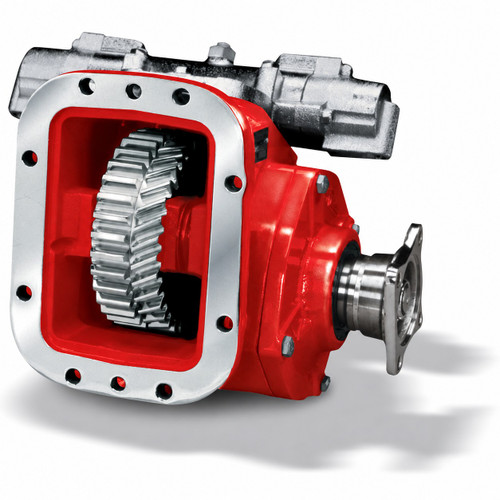

Genuine Chelsea PTO parts P/N: 880-09 or SP88009, ready to ship worldwide! Call us with any questions.
Features
Rugged cast iron housing for durability
Simple backlash adjustment for reduced installation time
Dual-Pump output for mounting a pump on each end of the PTO
Tech Specs
- INTERMITTENT TORQUE: 401-500 lb-ft 501+ Nm 500 (Check Application Pages for Actual Torque Ratings) lb-ft 678 (Check Application Pages for Actual Torque Ratings) Nm
- TRANSMISSION MANUFACTURER: Volvo/Mack Allison Eaton/Fuller Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP 51+ kW
- OUTPUT SHAFT TYPE: 1410 Companion Flange 1-1/2" - 10T Spline w/ 1410 Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 500 RPM: 48, 1000 RPM: 95 HP 500 RPM: 36, 1000 RPM: 71 kW
- WEIGHT: 63 lb 28.6 kg
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
