Chelsea PTO 880 Series Parts Manual

This Chelsea Illustrated Parts List covering the 880 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.

Models covered880
PTO typeChelsea 800 Series
DocumentIllustrated Parts List (Chelsea)
Length53 pages
FormatPDF — view below or download free

What’s inside

  • Gear sets & output shaft assemblies
  • Shifter & air-shift control kits
  • Mounting gaskets & adapter plates
  • Housings & cover assemblies
  • Seal, bearing & snap-ring kits
  • Application & ratio reference tables
  • Exploded views with OEM part numbers

Read the manual

Download PDF

This is our interactive copy of the factory manual — part numbers are clickable and every exploded-view callout links to the part. Plain factory PDF if you prefer it.

Chelsea parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:

Chelsea 880 parts list — every part number linked

This is the bill of materials from the manual above, matched against our own stock. Click any part number to see the listing and current price, or use ▶ Add to drop it straight in your cart. 846 of the 925 lines in this book are parts we carry.

Prices are shown on each product page so you always see the current one. Anything not linked, or marked no longer available, we can still usually source — call (877) 776-4600.

Prefer the book? Download the interactive PDF — same manual, with every part number and every exploded-view balloon clickable.

Bill of Materials — manual page 8

ItemPart numberDescriptionQtyOrder
 1-P-507Housing (X Standard Mount) (X, G & K Mounting) 1 or ▶ Add
 1-P-509Housing (2 Deep Mount) (2 & L Mounting) 1 or ▶ Add
23-P-872Output Shaft 1 OT Straight (XV Output Only) ▶ Add
34-P-163Spacer 1.753" x 2.250" x 2.828" (M Shifter Only) 1 or ▶ Add
44-P-164Spacer 1.753" x 2.250" x 1.395" (M Shifter Only) ▶ Add
53-1-34311410 Companion Flange (XV Output)  call to confirm availability
69-P-79Idler Shaft 1.0" (X Lube) 1 or ▶ Add
 9-P-80Idler Shaft 1.0" (P Lube) ▶ Add
814-P-81Spacer 1.014" x 1.750" x .255" ▶ Add
921-P-517Bearing Cap (X Lube) (XV Output) 1 or ▶ Add
 21-P-596Bearing Cap (P Lube) (XV Output) ▶ Add
1021-P-546Bearing Cap (X Lube) (AZ., AF, XV, XK, XS, XY & •AB Output) 1 or ▶ Add
 21-P-597Bearing Cap (P Lube) (AZ., AF, XV, XK, XS, XY & •AB Output) ▶ Add
1122-P-98Gasket ▶ Add
1228-P-42O-Ring 1.051" x .070" ▶ Add
1328-P-196O-Ring 6.000" x .138" (2 for •ss, •SK, •yy, •W) ▶ Add
1428-P-198O-Ring .798" x .103" ▶ Add
1528-P-211Oil Seal 3.001" x 2.00" x .375" ▶ Add
17378422Drive Screw2▶ Add
18378382Nut Stop .875"-14 (XV Output)  no longer available — call for a replacement1
19378431-11Hex Head Capscrew .375"-16 x 1.125"10▶ Add
20378431-18Hex Head Capscrew .375"-16 x 2.000"4▶ Add
21379484O-Ring Boss Plug .438"-20 ▶ Add
22379505O-Ring Retainer ▶ Add
23379556Tee .438"-20 ▶ Add
24379592Lockring ▶ Add
2568-P-51Name Plate ▶ Add
26500597-16Roll Pin .188" x 1.250" ▶ Add
27560982Bearing Cup Tapered 2.5635" x .550"2▶ Add
28560986Bearing Cone Tapered (XV Output)2▶ Add
29560978Bearing Cone Tapered 1.000" x .8448" (B, D, G & J Ratios) 2 or ▶ Add
 560987Bearing Cone Tapered 1.0005" x .96" (M, P, Q, R & T Ratios)2▶ Add
3061-P-1Hub Shifter ▶ Add

Bill of Materials — manual page 9

ItemPart numberDescriptionQtyOrder
33329777XAir Shifter Cover Ass'y (D Shifter Type) 1 or ▶ Add
 329772XAir Shifter Cover Ass'y (A Shifter Type) 1 or ▶ Add
 329774XLever Shifter Cover Ass'y (Y Shifter Type) 1 or ▶ Add
 329800XCover Kit (6-Bolt) (M Shifter Type)1▶ Add
3435-P-59Gasket (Except M Shifter Type)1▶ Add
35500897-5Shipping Plug (P Lube)  call to confirm availability2
38379564-2Cap Thread (.438")2▶ Add
3928-P-381Mounting Seal 0-Ring (For Q Mounting Type)1▶ Add
STUD KITS
 328170-179XStud Kit (X Standard Mount) 1 or ▶ Add
 328170-195XStud Kit (L Deep Mount) 1 or ▶ Add
 328170-201X Stud Kit (G Metric)1▶ Add
 328170-217XStud Kit (Q Eaton Endurant)1▶ Add
INSTALL ATION INSTRUCTION KIT
 328948-8XGasket & Installation Instructions (All Except Q Mount)1▶ Add
 328948-48XGasket & Installation Instructions (Q Mount)1▶ Add
INSTALLATION KITS
 328388-61XAir Shift Installation Kit (A Shift Only)1▶ Add
 328388-93XElec/Air Shift Installation Kit (P Shift Only)1▶ Add
 328751-1XIndicator Light Kit (Y Shift Only)1▶ Add
 329874-2X12V Elec/Air Kit (Eaton Endurant)1▶ Add
SERVICE KITS
 328356-51XGasket & Seal Kit (Standard XV Output) ▶ Add
 328356-52XGasket & Seal Kit (Pump Output) ▶ Add
 328356-53XGasket & Seal Kit (Y Shifter Type) ▶ Add
 328356-54XGasket & Seal Kit (2 Sided Shifter)(A Shifter Type) ▶ Add
 328356-72XGasket & Seal Kit (1 Sided Shifter)(A Shifter Type) ▶ Add
 328594-3XBearing & Spacer Kit (Pressure Lube for B, D, G & J Ratios) ▶ Add
 328594-5XBearing & Spacer Kit (Pressure Lube for M, P, Q, R & T Ratios) ▶ Add
 329183XOverhaul Kit ▶ Add
 329216-2XShifter Kit (Lever Shift) ▶ Add
 329216-3XShifter Kit (Air Shift) ▶ Add
 329216-4XConstant Mesh Kit (Standard) ▶ Add
HOSE ASSEMBLIES
 329129XHose Assembly (All Other Outputs)1▶ Add
 329129-1XHose Assembly (L Outputs)1▶ Add
 329130-1XHose Assembly (Idler Tee to Bearing Cap)1▶ Add
 329130-3XHose Assembly (Front Bearing Cap to Rear Bearing Cap)1▶ Add
 329224XPressure Lube Fittings Bag1▶ Add

Bill of Materials — manual page 13

ItemPart numberDescriptionQtyOrder
 329127XLUBE PUMP & BEARING CAP ASSEMBLY  no longer available — call for a replacement
623-P-881Pump Driveshaft ▶ Add
6321-P-547Bearing Cap ▶ Add
6422-P-73Gasket ▶ Add
6528-P-249O-Rlng2▶ Add
66378429-12Capscrew, Hex Head (.250"-20 x 1.250")3▶ Add
67379546Pump Adapter Plate  no longer available — call for a replacement
68379173Pump Plate1▶ Add
69379175Retaining Ring1▶ Add
70379176Gerotors1▶ Add
71379525Pump Cap, Dual Ported1▶ Add
72500037-7Dowel Pin (.188" x .625")  no longer available — call for a replacement2
73500566-3Drive Ball (.125") ▶ Add
74500897-8Shipping Plug (Plastic)  call to confirm availability
75500897-11Shipping Plug (Plastic)  no longer available — call for a replacement
76560982Tapered Bearing Cup ▶ Add
77500167-1Breather  no longer available — call for a replacement

Parts list (page 14) — manual page 14

ItemPart numberDescriptionQtyOrder
 329110-1XInstallation Kit, for mounting an 880 on a 912 Split Shaft1▶ Add
86378117Drain Plug Gasket1▶ Add
87379526Screened Strain Plug1▶ Add
8837927390 ° Elbow1▶ Add
89379181Hose Assembly, End to End Length 25.625"1▶ Add

Output Assembly — manual page 15

ItemPart numberDescriptionQtyOrder
90329129XHose Assembly, End to End Length 16.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250"1▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee ▶ Add
97379625Elbow ▶ Add
98500167Breather  call to confirm availability1

Output Assembly — manual page 16

ItemPart numberDescriptionQtyOrder
90329129XHose Assembly, End to End Length 16.000" ▶ Add
91379231Pipe Plug ▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250" ▶ Add
94379556Tee, O-Ring ▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee ▶ Add
97379625Elbow ▶ Add
98500167Breather  call to confirm availability

Output Assembly — manual page 17

ItemPart numberDescriptionQtyOrder
90329129XHose Assembly, End to End Length 16.000"1▶ Add
91379231Pipe Plug1▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250"1▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee1▶ Add
97379625Elbow1▶ Add
98500167Breather  call to confirm availability1

Output Assembly — manual page 18

ItemPart numberDescriptionQtyOrder
90329129XHose Assembly, End to End Length 16.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250"1▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee ▶ Add
97379625Elbow ▶ Add
98500167Breather  call to confirm availability1

Output Assembly — manual page 19

ItemPart numberDescriptionQtyOrder
91329129-1XHose Assembly, End to End Length 36.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250"1▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee1▶ Add
97379625Elbow1▶ Add
98378897Transmission Tee Fitting1▶ Add

Output Assembly — manual page 20

ItemPart numberDescriptionQtyOrder
91329129-1XHose Assembly, End to End Length 36.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250"1▶ Add
93329130-3XHose Assembly, End to End Length 20.250"1▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee1▶ Add
97379625Elbow1▶ Add
98378897Transmission Tee Fitting1▶ Add
99329231Pipe Plug1▶ Add
10028-P-245O-Ring1▶ Add

Output Assembly — manual page 21

ItemPart numberDescriptionQtyOrder
91329129-1XHose Assembly, End to End Length 36.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250" ▶ Add
93329130-3XHose Assembly, End to End Length 20.250" ▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee1▶ Add
97379625Elbow1▶ Add
98379897Transmission Tee Fitting  call to confirm availability1

Output Assembly — manual page 22

ItemPart numberDescriptionQtyOrder
91329129-1XHose Assembly, End to End Length 36.000"1▶ Add
92329130-1XHose Assembly, End to End Length 16.250" ▶ Add
93329130-3XHose Assembly, End to End Length 20.250" ▶ Add
94379556Tee, O-Ring1▶ Add
95379594Pipe Adapter2▶ Add
96379627Tee1▶ Add
97379625Elbow1▶ Add
98378897Transmission Tee Fitting1▶ Add
99379231Pipe Plug1▶ Add
10028-P-245O-Ring1▶ Add

Shift Options — manual page 24

ItemPart numberDescriptionQtyOrder
 329216-1XConstant Mesh Kit, Fuller CEEMAT™  no longer available — call for a replacement
34-P-171Spacer, Output Shaft 2.825" width, Constant mesh only  no longer available — call for a replacement1
44-P-164Spacer, Output Shaft 1.392" width, Constant mesh only1▶ Add
 34-P-3196-Bolt Cover Plate -Thick1▶ Add
 35-P-1176 Bolt Gasket1▶ Add
 329216-4XConstant Mesh Kit, Standard ▶ Add
34-P-163Spacer, Output Shaft 2.825" width, Constant mesh only1▶ Add
44-P-164Spacer, Output Shaft 1.392" width, Constant mesh only1▶ Add
 34-P-3196-Bolt Cover Plate -Thick1▶ Add
 35-P-1176 Bolt Gasket1▶ Add

Shift Options — manual page 25

ItemPart numberDescriptionQtyOrder
 329216-3XAir Shifter Kit ▶ Add
 328388-61XInstallation Kit1▶ Add
 329772XAir Shift Cover Assembly (Includes items 1 thru 17) ▶ Add
 34-P-311Cover Shifter1▶ Add
211-P-165Shaft Shifter ▶ Add
322-P-113Gasket .823" ▶ Add
428-P-61O-Ring 1.359" x .139"2▶ Add
564-P-9Clip Shifter Fork ▶ Add
628-P-198O-Ring .798" x .103" ▶ Add
7378316Lockring Internal ▶ Add
8380515Switch Indicator ▶ Add
10378431-12Capscrew HH .375"-16 x 1.250"2▶ Add
1132-P-172Fork Shifter ▶ Add
12378315Plug Cover1▶ Add
1366-P-24Piston Shifter ▶ Add
14379027Cap Cylinder ▶ Add
15378431-30Capscrew HH .375"-16 x 4.00"2▶ Add
1628-P-42O-Ring 1.051" x .070" ▶ Add
1765-P-43Cylinder Air Shift ▶ Add
1835-P-59Gasket ▶ Add
19378431-11Capscrew Hex Head, (.375"-16 x 1.125")2▶ Add
20378431-18Capscrew Hex Head, (.375"-16 x 2.000")4▶ Add

Shift Options — manual page 26

ItemPart numberDescriptionQtyOrder
 329216-2XShifter Kit Lever ▶ Add
 328751-1XInstallation Kit1▶ Add
 329774XLever Control Assembly (Includes items 1 thru 15) ▶ Add
 34-P-312Cover Shifter ▶ Add
211-P-165Shaft Shifter ▶ Add
332-P-172Fork Shifter ▶ Add
428-P-218Oil Seal ▶ Add
5380515Switch Indicator ▶ Add
6378315Plug Cover1▶ Add
7378316Lock ring, Internal ▶ Add
828-P-42O-Ring1▶ Add
936-P-1Eye Bolt ▶ Add
10500381-3Hex Jamb Nut, .375"-24 ▶ Add
11378431-12Capscrew HH .375"-16 x 1.250"2▶ Add
1264-P-9Clip Shifter Fork2▶ Add
13378554Cap Poppet2▶ Add
1437-P-41Spring .406" x 1.125"2▶ Add
15378002Ball Shifter .437"2▶ Add
1635-P-59Gasket ▶ Add
17378431-11Capscrew Hex Head (.375"-16 x 1.125")2▶ Add
18378431-18Capscrew Hex Head (.375"-16 x 2.000")4▶ Add

Shift Options — manual page 27

ItemPart numberDescriptionQtyOrder
 329777XCOVER ASSEMBLY (Includes items 1 thru 17) ▶ Add
 34-P-311Cover Shifter1▶ Add
211-P-165Shaft Shifter ▶ Add
322-P-113Gasket 1.3865" x 1.937" x .015"1▶ Add
428-P-61O-Ring 1.359" x .139"2▶ Add
564-P-9Clip Shifter Fork2▶ Add
628-P-198O-Ring 798" x .103"1▶ Add
7378316Lockring Internal ▶ Add
8379038Switch Indicator1▶ Add
9500897-5Plug Shipping  call to confirm availability2
10378431-12Capscrew HH .375"-16 x 1.250" ▶ Add
1132-P-172Fork Shifter ▶ Add
12378315Plug Cover ▶ Add
1366-P-24Piston Shifter ▶ Add
14379027Cap Cylinder ▶ Add
15378431-30Capscrew HH .375"-16 x 4.00"2▶ Add
1628-P-42O-Ring 1.051" x .070" ▶ Add
1765-P-43Cylinder Air Shift ▶ Add

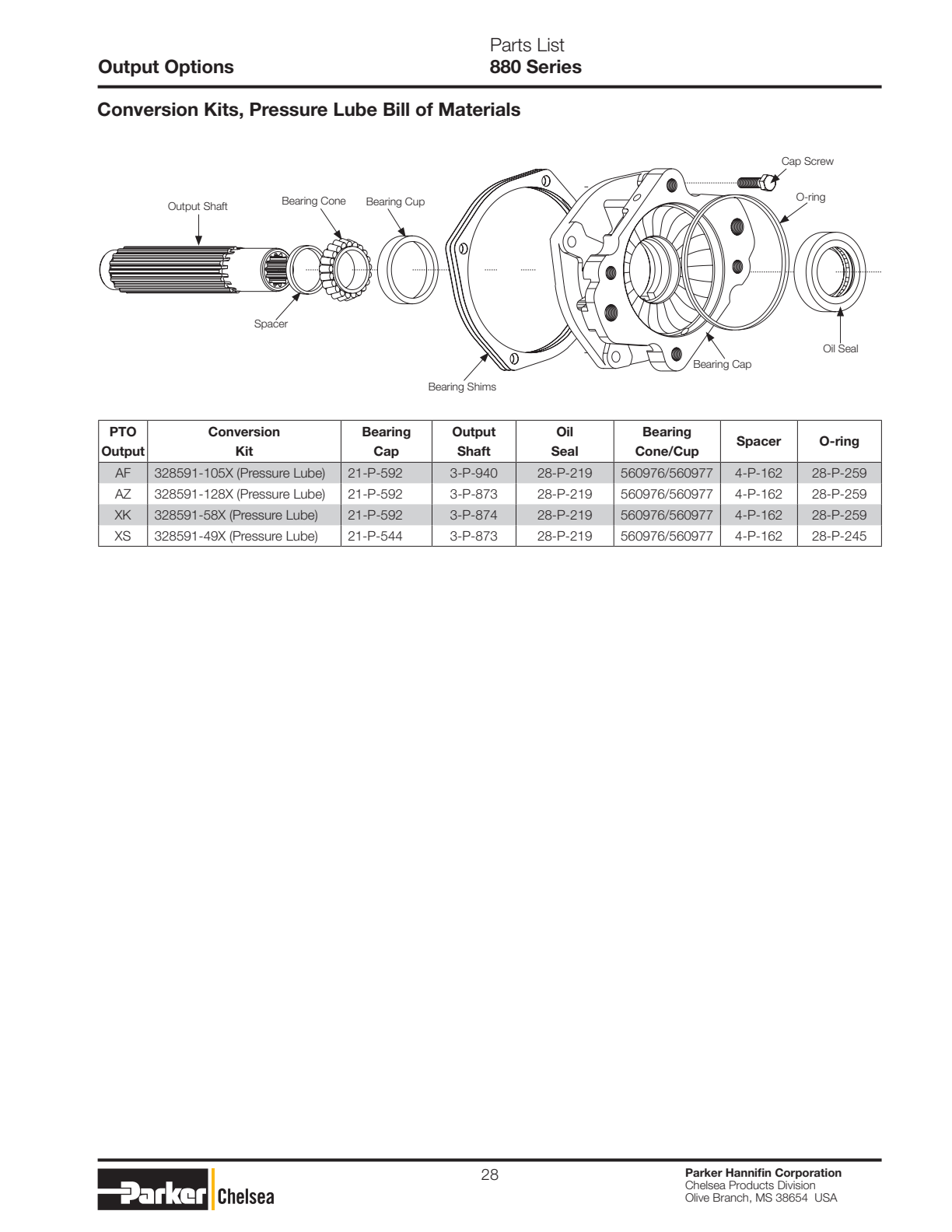

Kits — manual page 28

ItemPart numberDescriptionQtyOrder
 328591-104X(Splash Lube) ▶ Add
 328591-105X(Pressure Lube)  no longer available — call for a replacement
 328591-127X(Splash Lube) ▶ Add
 328591-128X(Pressure Lube)  no longer available — call for a replacement
 328591-32X(Splash Lube) ▶ Add
 328591-58X(Pressure Lube) ▶ Add
 328591-31X(Splash Lube) ▶ Add
 328591-49X(Pressure Lube) ▶ Add
 21-P-515(0) 28-P-219 560976/560977 ▶ Add
 21-P-653X(R) 28-P-226 560986/560982 ▶ Add
 28-P-219(0) 560976/560977 ▶ Add
 28-P-226(R) 560986/560982 ▶ Add

Bill of Materials — manual page 30

ItemPart numberDescriptionQtyOrder
 3-P-872Output Shaft ( 1-1 /2" -1 OT)1▶ Add
 28-P-211Oil Seal1▶ Add
 21-P-517Bearing Cap (X Lube)1▶ Add
 21-P-595Bearing Cap (P Lube)  call to confirm availability1
 378431-11Socket Hex Capscrew (.375"-16 X 1.125")4▶ Add
 378382Hex Nut .875"-14  no longer available — call for a replacement1
 560986Tapered Bearing Cone1▶ Add
 21-P-517Bearing Cap, Output1▶ Add
 21-P-596Bearing Cap, Output (For Pressure Lube)1▶ Add
 28-P-211Oil Seal1▶ Add
 378558Hex Nut  call to confirm availability1
 379558Companion Flange1▶ Add
 560982Tapered Bearing Cup1▶ Add
 560986Tapered Bearing Cone1▶ Add
 3-P-872Output Shaft1▶ Add
 21-P-517Bearing Cap, Output1▶ Add
 21-P-596Bearing Cap, Output (For Pressure Lube)1▶ Add
 28-P-211Oil Seal4▶ Add
 378382Hex Nut  no longer available — call for a replacement1
 379742Companion Flange (DIN 100)1▶ Add

Bill of Materials — manual page 31

ItemPart numberDescriptionQtyOrder
 3-P-901Output Shaft (F Mounting Type)  call to confirm availability1
 3-P-874Output Shaft (All Other Mounting Types)1▶ Add
 28-P-219Oil Seal1▶ Add
 4-P-162Spacer1▶ Add
 21-P-539Bearing Cap, Output1▶ Add
 21-P-592Bearing Cap, Output (For Pressure Lube)1▶ Add
 378447-6Socket Hex Capscrew (.312"-18 x 1.000")4▶ Add
 28-P-259O-Ring1▶ Add
 560976Tapered Bearing Cone1▶ Add
 379231Pipe Plug (Pressure Lube Only)1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-259O-Ring1▶ Add
 560976Bearing Cone1▶ Add
 379231Pipe Plug (Pressure Lube Only)1▶ Add
 21-P-592Bearing Cap Output (Pressure Lube)1▶ Add
 21-P-539Bearing Cap Output1▶ Add
 3-P-940Output Shaft1▶ Add
 4-P-162Spacer1▶ Add
 3-P-873Output Shaft1▶ Add
 28-P-219Oil Seal1▶ Add
 21-P-539Bearing Cap, Output1▶ Add
 21-P-592Bearing Cap, Output (Pressure Lube Only)1▶ Add
 28-P-259O-Ring1▶ Add
 500007-29Woodruff Key1▶ Add
 379231Pipe Plug (Pressure Lube Only)1▶ Add
 500897-3Shipping Plug (Pressure Lube Only)  no longer available — call for a replacement1

Bill of Materials — manual page 32

ItemPart numberDescriptionQtyOrder
 3-P-202Output Shaft1▶ Add
 28-P-216Oil Seal1▶ Add
 329273XBearing Cap Ass'y1▶ Add
 378447-6Socket Hex Capscrew (.312"-18 X 1.000"}4▶ Add
 500007-29Woodruff Key1▶ Add
 379828Companion Flange1▶ Add
 378454-7Set Screw1▶ Add
 3-P-202Output Shaft (1-1/4" Round w/ 5/16" Keyway)1▶ Add
 28-P-216Oil Seal1▶ Add
 329273XBearing Cap Ass'y1▶ Add
 378447-6Socket Hex Capscrew (.312"-18 X 1.000"}4▶ Add
 500007-29Woodruff Key1▶ Add
 379828Companion Flange1▶ Add
 378454-7Set Screw1▶ Add

Bill of Materials — manual page 33

ItemPart numberDescriptionQtyOrder
 21-P-541Output Bearing Cap ▶ Add
 21-P-652Rear Bearing Cap  call to confirm availability
 28-P-287Oil Seal ▶ Add
 28-P-275Oil Seal ▶ Add
 379555Lockring ▶ Add
 560984Tapered Bearing Cup ▶ Add
 560985Tapered Bearing Cone ▶ Add
 561012Tapered Bearing Cup  no longer available — call for a replacement
 378898Flat Hex Capscrew (.438"-14 x 1.000"} ▶ Add
 379560Spline Coupling  no longer available — call for a replacement
UNC-2B
 4-P-162Spacer2▶ Add
 21-P-544Output Bearing Cap (For Pressure Lube}1▶ Add
 21-P-515Rear Bearing Cap1▶ Add
 21-P-544Rear Bearing Cap (For Pressure Lube}1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-214Oil Seal1▶ Add
 28-P-245O-Ring2▶ Add
 560977Tapered Bearing Cup2▶ Add
 560976Tapered Bearing Cone2▶ Add
 379231Pipe Plug (Pressure Lube)2▶ Add
 69-P-18Tag (Wet Spline Only}1▶ Add

Bill of Materials — manual page 34

ItemPart numberDescriptionQtyOrder
 4-P-162Spacer2▶ Add
 21-P-515Output Bearing Cap1▶ Add
 21-P-593Output Bearing Cap (For Pressure Lube)  call to confirm availability1
 21-P-539Rear Bearing Cap1▶ Add
 21-P-592Rear Bearing Cap (For Pressure Lube)1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-214Oil Seal1▶ Add
 28-P-245O-Ring1▶ Add
 28-P-259O-Ring1▶ Add
 560976Tapered Bearing Cone1▶ Add
 500897-3Shipping Plug  no longer available — call for a replacement2
 69-P-18Tag (Wet Spline Only)1▶ Add
 3-P-916Output Shaft 1-1/2"-10T (Both Sides)  call to confirm availability1
 21-P-517Output Bearing Cap1▶ Add
 21-P-596Output Bearing Cap (For Pressure Lube)1▶ Add
 21-P-517Rear Bearing Cap1▶ Add
 21-P-596Rear Bearing Cap (For Pressure Lube)1▶ Add
 28-P-211Oil Seal2▶ Add
 378382Hex Nut  no longer available — call for a replacement2
 380503Companion Flange 1410 Series2▶ Add
 560982Tapered Bearing Cup2▶ Add

Bill of Materials — manual page 35

ItemPart numberDescriptionQtyOrder
 3-P-878Output Shaft (LF Output)  no longer available — call for a replacement
 3-P-879Output Shaft (LG Output) ▶ Add
 3-P-877Output Shaft (LH Output)  no longer available — call for a replacement
 3-P-879Output Shaft (LL Output) ▶ Add
 329127XBearing Cap & Lube Pump Ass'y  no longer available — call for a replacement1
 500897-3Plastic Plug  no longer available — call for a replacement2
 500167-1Relief Valve Fitting  no longer available — call for a replacement2
 3-P-949XGreaseable Output Shaft Ass'y (GS Output)1▶ Add
 379432-1Socket Head Capscrew .312"-18 x .375"3▶ Add
 28-P-226Shaft Seal1▶ Add
 21-P-653Bearing Cap1▶ Add
 379231Pipe Plug1▶ Add

Parts list (page 36) — manual page 36

ItemPart numberDescriptionQtyOrder
OPERATING INSTRUCTIONS
 37964068-P-18 ▶ Add
 379252Butt Connector ▶ Add
 379652Fuse Holder Ass'y ▶ Add

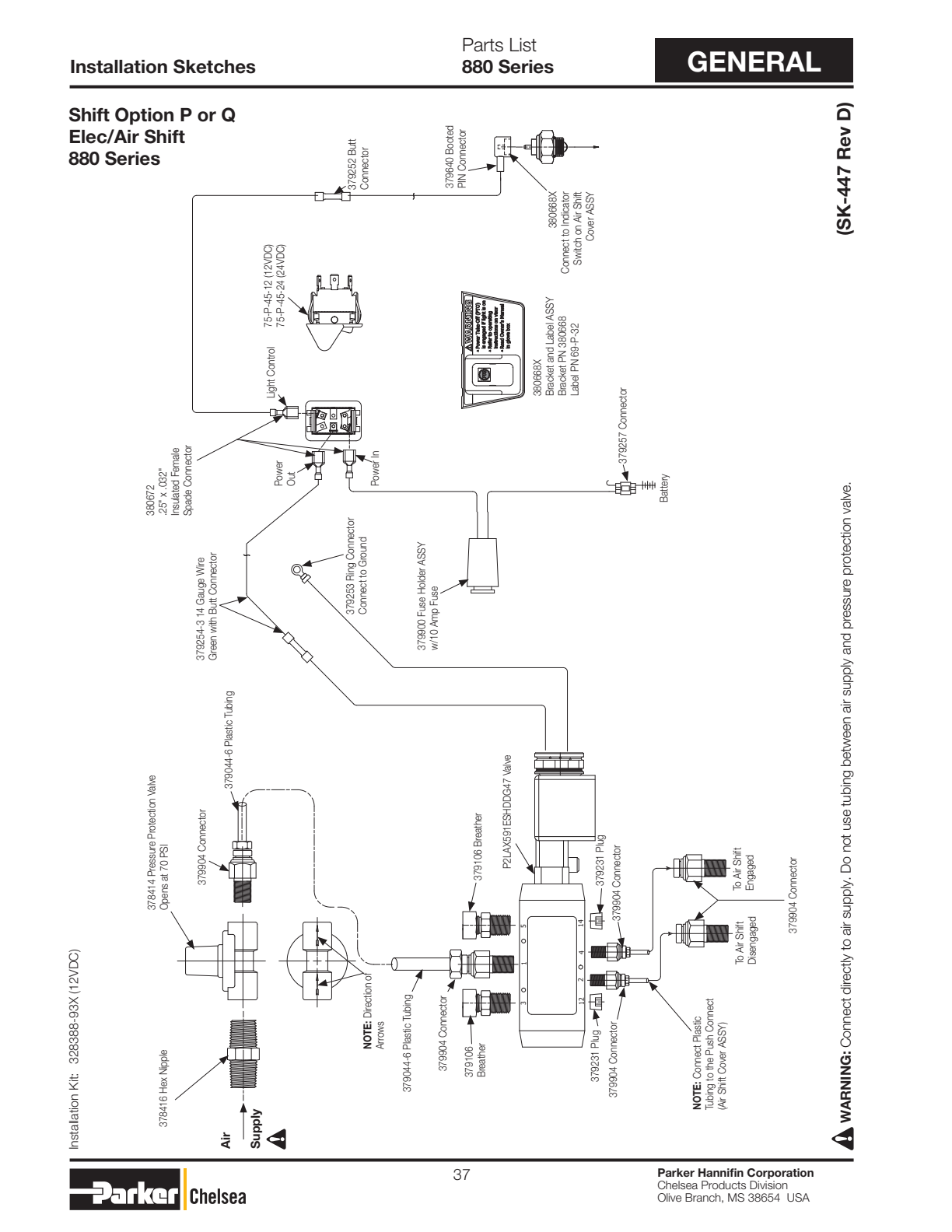

Parts list (page 37) — manual page 37

ItemPart numberDescriptionQtyOrder
 328864XValve Assembly ▶ Add
 378414Pressure I ▶ Add

Parts list (page 38) — manual page 38

ItemPart numberDescriptionQtyOrder
 378416Hex. Nipple ▶ Add
 379044-6Plastic Tubing ▶ Add
 379254-314 Gauge Wire f0▶ Add
 379253Ring Connector en ▶ Add
 379306Fork Connector ¾. a,,/;'/ ▶ Add
 379044-6Plastic Tubing ▶ Add
 379252Butt ▶ Add
 379106Breather ▶ Add
 379106' ▶ Add
 379900Fuse Holder Ass'y ▶ Add
12 14
 379231Plug Connect to Indicator ▶ Add
 379904ConnectQr 379904 Connector Cover Ass'y ▶ Add
 379257Connector ▶ Add
 379904Connector ▶ Add

Parts list (page 39) — manual page 39

ItemPart numberDescriptionQtyOrder
P2LAX591
 378414379904 ▶ Add
 3799043 12 to ▶ Add

Bill of Materials — manual page 40

ItemPart numberDescriptionQtyOrder
INSTALLATION INSTRUCTION KITS
 328170-179XStud Kit (Standard Mount) ▶ Add
 379424-21Stud (.438"-14 X .438"-20 X 2.250")8▶ Add
 37974511/16" Hex Head Flange Nut (.438"-20)8▶ Add
 328170-195XStud Kit (Deep Mount) ▶ Add
 379424-18Stud (.438"-14 X .438"-20 X 2.000")2▶ Add
 328948-48XGasket & Installation Instructions (Q Mount) ▶ Add
 37974511/16" Hex Head Flange Nut (.438"-20)8▶ Add
 328946XCaution Label Kit  no longer available — call for a replacement1
 379424-21Stud (.438"-14 X .438"-20 X 2.250")8▶ Add
 379085-1PTO Instructions Decal1▶ Add
 28-P-381O-Ring Mounting Seal1▶ Add
 328170-201X Stud Kit (Metric Mount) ▶ Add
 379624Product Warranty Card1▶ Add
 37974511/16" Hex Head Flange Nut (.438"-20)8▶ Add
 379429-19Stud (M12 X 1.175" X .438"-20 X 2.000")8▶ Add
 69-P-27Supplemental Install Instructions1▶ Add
 328170-217XStud Kit (Eaton Endurant) ▶ Add
 380605Locking Patch Stud ▶ Add
 37974511/16" Hex Head Flange Nut (.438"-20)8▶ Add

Bill of Materials — manual page 41

ItemPart numberDescriptionQtyOrder
SERVICE KITS I
 328388-61XAir Shift (A Shift Only) ▶ Add
 328356-51XGasket & Seal Kit (Standard XV Output) ▶ Add
 68-P-28Name Plate1▶ Add
 22-P-98Gasket1▶ Add
 328388-45XAir Shift1▶ Add
 28-P-198O-Ring1▶ Add
 329090-2XValve Kit  call to confirm availability1
 28-P-198O-Ring1▶ Add
 328864XShifter Valve1▶ Add
 28-P-211Oil Seal1▶ Add
 378414Pressure Protection Valve1▶ Add
 28-P-42O-Ring1▶ Add
 379044-6Nylon Tubing1▶ Add
 379130Support Bracket2▶ Add
 379252Butt Connector2▶ Add
 35-P-59Gasket1▶ Add
 379640Booted Connector1▶ Add
 379254-16Ring Connect  no longer available — call for a replacement1
 328388-93XElec/Air Shift Kit (P Shift Only) ▶ Add
 328388-94XValve and Connector Kit ▶ Add
 328356-52XGasket & Seal Kit (Pump Output) ▶ Add
 378414Air Shifter Pressure Protection Valve ▶ Add
 22-P-98Gasket ▶ Add
 378881Rocker Switch  no longer available — call for a replacement
 28-P-198O-Ring ▶ Add
 37897812V Indicator Light ▶ Add
 28-P-198O-Ring ▶ Add
 379044-6Tubing (.253" x .179" x 30')1▶ Add
 28-P-219Oil Seal1▶ Add
 379252Electrical Butt Connector2▶ Add
 28-P-42O-Ring1▶ Add
 379336Elec/Air Shifter Bracket Switch1▶ Add
 379254-314 Gauge Wire, Green ▶ Add
 35-P-59Gasket1▶ Add
 379640Booted Connector ▶ Add
 328751-1XIndicator Light Kit ▶ Add
 378978Indicator Light1▶ Add
 379252Butt Connect2▶ Add
 328356-53XGasket & Seal Kit (Y Shifter Type) ▶ Add
 68-P-18Name Plate1▶ Add
 28-P-218Oil Seal2▶ Add
 379640Booted Connector1▶ Add
 35-P-59Shift Cover Gasket1▶ Add
 379900Ass'y Fuse1▶ Add
 22-P-96Gasket2▶ Add
 28-P-61O-Ring4▶ Add
 35-P-59Shift Cover Gasket1▶ Add

Bill of Materials — manual page 42

ItemPart numberDescriptionQtyOrder
 328356-72XGasket & Seal Kit (1 Sided Shifter) ▶ Add
 329183XRepair Kit/Overhaul ▶ Add
 22-P-113Gasket .823"1▶ Add
 28-P-61O-Ring 1.359" X .139"2▶ Add
 28-P-198O-Ring 798" X .103"1▶ Add
 22-P-96Gasket 8802▶ Add
 28-P-42O-Ring 1.051" X .070"1▶ Add
 22-P-98Gasket1▶ Add
 35-P-59Gasket2▶ Add
 28-P-198O-Ring1▶ Add
 28-P-198O-Ring1▶ Add
 328594-3XBearing & Spacer Kit (Pressure Lube for B, ▶ Add
 28-P-211Oil Seal1▶ Add
 28-P-218Oil Seal2▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-42O-Ring1▶ Add
 28-P-61O-Ring4▶ Add
 28-P-198O-Ring1▶ Add
 28-P-42O-Ring1▶ Add
 379484Plug O-Ring1▶ Add
 35-P-59Gasket1▶ Add
 37948690 ° Elbow1▶ Add
 379505Retainer O-Ring1▶ Add
 379564-2Cap Thread2▶ Add
 379556Tee .438"-21▶ Add
 560976Bearing Tape1▶ Add
 560978Bearing Cone (Tapered)2▶ Add
 560977Bearing Tape1▶ Add
 9-P-80Idler Shaft1▶ Add
 560978Bearing Cone Tapered2▶ Add
 14-P-81Washer1▶ Add
 560982Bearing Cup Tapered2▶ Add
 560986Bearing Tape2▶ Add
 560987Tapered Bearing Cone2▶ Add
 329216-2XShifter Kit (Lever Shift) ▶ Add
 328751-1XInstall Kit1▶ Add
 329125XShifter Cover1▶ Add
 28-P-198O-Ring1▶ Add
 35-P-59Gasket1▶ Add
 28-P-42O-Ring1▶ Add
 378431-11Hex Capscrew2▶ Add
 379484Plug O-Ring1▶ Add
 378431-18Capscrew4▶ Add
 37948690 ° Elbow1▶ Add
 379505Retainer O-Ring1▶ Add
 329216-3XShifter Kit (Air Shift) ▶ Add
 379564-2Cap Thread2▶ Add
 328388-61XAir Shift1▶ Add
 379556Tee .438"-21▶ Add
 329126XShifter Cover1▶ Add
 560987Tapered Bearing Cone2▶ Add
 35-P-59Gasket1▶ Add
 9-P-80Idler Shaft1▶ Add
 378431-11Hex Capscrew2▶ Add
 14-P-81Washer1▶ Add
 378431-18Capscrew4▶ Add
 329216-4XConstant Mesh Kit ▶ Add
 34-P-16Cover 6-Bolt  call to confirm availability1
 35-P-59Gasket1▶ Add
 4-P-163Spacer1▶ Add
 4-P-164Spacer, Output Shaft1▶ Add

Bill of Materials — manual page 43

ItemPart numberDescriptionQtyOrder
CONVERSION KITS
 328591-31XConversion Kit (XV to XS) (Splash Lube) ▶ Add
 328591-34XConversion Kit (XV to XV) (Splash Lube) ▶ Add
 378422-1Drive Screw2▶ Add
 378422-1Drive Screw2▶ Add
 21-P-515Bearing Cap1▶ Add
 21-P-541Pump Flange1▶ Add
 22-P-98Gasket1▶ Add
 22-P-98Gasket1▶ Add
 28-P-198O-Ring1▶ Add
 28-P-198O-Ring1▶ Add
 28-P-219Oil Seal1▶ Add
 3-P-876Output Shaft1▶ Add
 3-P-873Output Shaft1▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 378431-11Hex Capscrew4▶ Add
 378431-11Hex Capscrew4▶ Add
 379555Lock ring1▶ Add
 379688Lubricant1▶ Add
 379688Lubricant1▶ Add
 4-P-162Spacer1▶ Add
 560982Tapered Bearing Cup1▶ Add
 560976Bearing Tape ▶ Add
 560984Bearing Tapered Cup1▶ Add
 560977Bearing Tape ▶ Add
 560985Bearing Tapered Cone1▶ Add
 560982Tapered Bearing Cup ▶ Add
 560986Tapered Bearing Cone1▶ Add
 560986Tapered Bearing Cone ▶ Add
 28-P-267Oil Seal1▶ Add
 68-P-2Name Plate ▶ Add
 68-P-2Name Plate1▶ Add
 328591-32XConversion Kit (XV to XK) (Splash Lube) ▶ Add
 328591-49XConversion Kit (XV to XS) (Pressure Lube) ▶ Add
 21-P-539Flange1▶ Add
 378422-1Drive Screw2▶ Add
 22-P-98Gasket1▶ Add
 379688Lubricant1▶ Add
 28-P-198O-Ring1▶ Add
 21-P-544Flange1▶ Add
 28-P-219Oil Seal1▶ Add
 22-P-98Gasket1▶ Add
 3-P-874Output Shaft1▶ Add
 28-P-198O-Ring1▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 28-P-198O-Ring1▶ Add
 378431-11Hex Capscrew4▶ Add
 28-P-219Oil Seal1▶ Add
 379688Lubricant1▶ Add
 28-P-42O-Ring1▶ Add
 4-P-162Spacer1▶ Add
 3-P-873Output Shaft1▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 329129-1XPressure Lube1▶ Add
 329130-1XPressure Lube1▶ Add
 560976Bearing Tape1▶ Add
 329130-3X20 Inch Hose Assembly1▶ Add
 560977Bearing Tape1▶ Add
 329224XLoose Part1▶ Add
 560982Tapered Bearing Cup1▶ Add
 379231Plug Pipe1▶ Add
 560986Tapered Bearing Cone1▶ Add
 378431-11Hex Capscrew4▶ Add
 378422-1Drive Screw2▶ Add
 379484Plug O-Ring1▶ Add
 68-P-2Name Plate1▶ Add
 379505Retainer, O-Ring1▶ Add
 379556Tee .438" 21▶ Add
 379564-2Cap Thread1▶ Add
 4-P-162Spacer XV1▶ Add
 560976Bearing Tape1▶ Add
 560977Bearing Tape1▶ Add
 560982Tapered Bearing Cup1▶ Add
 560986Tapered Bearing Cone1▶ Add
 9-P-80Idler Shaft1▶ Add
 21-P-597Bearing Cap1▶ Add
 28-P-245XO-Ring Kit1▶ Add
 68-P-2Name Plate1▶ Add

Bill of Materials — manual page 44

ItemPart numberDescriptionQtyOrder
 3-P-875Output Shaft1▶ Add
 21-P-592Special Bracket1▶ Add
 4-P-162Spacer2▶ Add
 22-P-98Gasket1▶ Add
 21-P-515Output Bearing Cap1▶ Add
 28-P-198O-Ring1▶ Add
 21-P-544Output Bearing Cap (For Pressure Lube)1▶ Add
 28-P-198O-Ring1▶ Add
 21-P-515Rear Bearing Cap1▶ Add
 28-P-219Oil Seal1▶ Add
 21-P-544Rear Bearing Cap (For Pressure Lube)1▶ Add
 28-P-259O-Ring1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-42O-Ring1▶ Add
 28-P-245O-Ring2▶ Add
 3-P-874Output Shaft1▶ Add
 560977Tapered Bearing Cup2▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 560976Tapered Bearing Cone2▶ Add
 329129-1XPressure Lube1▶ Add
 379231Pipe Plug2▶ Add
 329130-1XPressure Lube1▶ Add
 500897-3Shipping Plug  no longer available — call for a replacement2
 329130-3X20 Inch Hose Assembly1▶ Add
 69-P-18Tag (Wet Spline Only)1▶ Add
 329224XLoose Part1▶ Add
 379231Plug Pipe ▶ Add
 328591-51XConversion Kit (XV to SS) (Pressure Lube)  call to confirm availability
 378431-11Hex Capscrew4▶ Add
 3-P-875Output Shaft1▶ Add
 379484Plug O-Ring ▶ Add
 4-P-162Spacer2▶ Add
 379505Retainer, O-Ring1▶ Add
 21-P-515Output Bearing Cap1▶ Add
 379556Tee .438"-2 ▶ Add
 21-P-544Output Bearing Cap (For Pressure Lube)1▶ Add
 379564-2Cap Thread ▶ Add
 21-P-515Rear Bearing Cap1▶ Add
 379688Lubricant1▶ Add
 21-P-544Rear Bearing Cap (For Pressure Lube)1▶ Add
 4-P-162Spacer1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-245O-Ring2▶ Add
 560977Tapered Bearing Cup2▶ Add
 560976Tapered Bearing Cone2▶ Add
 560976Bearing Tape ▶ Add
 379231Pipe Plug2▶ Add
 560977Bearing Tape ▶ Add
 500897-3Shipping Plug  no longer available — call for a replacement2
 560982Tapered Bearing Cup ▶ Add
 69-P-18Tag (Wet Spline Only)1▶ Add
 560986Tapered Bearing Cone ▶ Add
 9-P-80Idler Shaft ▶ Add
 378422-1Drive Screw2▶ Add
 21-P-597Bearing Cap1▶ Add
 68-P-2Name Plate1▶ Add
 328591-59X• Conversion Kit (XV to AB) (Splash Lube)  call to confirm availability
 3-P-872Output Shaft1▶ Add
 28-P-216Output Bearing Cap1▶ Add
 329273XOutput Bearing Cap (For Pressure Lube)1▶ Add
 378447-6Oil Seal1▶ Add
 500007-29Hex Nut2▶ Add
 379558Companion Flange2▶ Add
 560982Tapered Bearing Cup2▶ Add
 560986Tapered Bearing Cone2▶ Add
 3-P-872Output Shaft1▶ Add
 28-P-216Output Bearing Cap1▶ Add
 329273XOutput Bearing Cap (For Pressure Lube)1▶ Add
 378447-6Oil Seal1▶ Add
 500007-29Hex Nut2▶ Add
 379558Companion Flange2▶ Add
 560982Tapered Bearing Cup2▶ Add
 560986Tapered Bearing Cone2▶ Add

Bill of Materials — manual page 45

ItemPart numberDescriptionQtyOrder
 328591-61XConversion Kit (XV to VY) (Splash Lube)  call to confirm availability
 328591-104XConversion Kit (XV to AF) (Splash Lube) ▶ Add
 3-P-880Output Shaft  call to confirm availability
 3-P-940Output Shaft1▶ Add
 21-P-541Output Bearing Cap ▶ Add
 378422-1Drive Screw2▶ Add
 21-P-652Rear Bearing Cap  call to confirm availability
 28-P-287Oil Seal ▶ Add
 28-P-198O-Ring1▶ Add
 379555Lockring ▶ Add
 560977Bearing Tape1▶ Add
 560984Tapered Bearing Cup ▶ Add
 560976Bearing Tape1▶ Add
 560985Tapered Bearing Cone ▶ Add
 561012Tapered Bearing Cup  no longer available — call for a replacement
 21-P-539Flange1▶ Add
 561011Tapered Bearing Cup  no longer available — call for a replacement
 22-P-98Gasket1▶ Add
 378898Flat Hex Capscrew (.438"-14 x 1.000") ▶ Add
 378431-11Hex Cap screw4▶ Add
 379555Spline Coupling ▶ Add
 328948-8XGasket & Installation Instructions1▶ Add
 28-P-219Oil Seal1▶ Add
 328591-67XConversion Kit (XV to SK) (Pressure Lube)  call to confirm availability
 379688Lubricant1▶ Add
 3-P-902Output Shaft  call to confirm availability1
 4-P-162Spacer ▶ Add
 4-P-162Spacer2▶ Add
 21-P-515Output Bearing Cap (For Pressure Lube)1▶ Add
 560982Tapered Bearing Cup1▶ Add
 21-P-593Rear Bearing Cap  call to confirm availability1
 560986Tapered Bearing Cone1▶ Add
 21-P-539Rear Bearing Cap (For Pressure Lube)1▶ Add
 68-P-2Name Plate1▶ Add
 21-P-592Rear Bearing Cap1▶ Add
 28-P-219Oil Seal1▶ Add
 328591-105XConversion Kit (XV to AF) (Pressure Lube)  no longer available — call for a replacement
 28-P-245O-Ring1▶ Add
 21-P-592Special Bracket1▶ Add
 28-P-259O-Ring1▶ Add
 21-P-597Bearing Cap1▶ Add
 560977Tapered Bearing Cup1▶ Add
 22-P-98Gasket1▶ Add
 560976Tapered Bearing Cone1▶ Add
 28-P-198O-Ring1▶ Add
 379231Pipe Plug2▶ Add
 28-P-198O-Ring1▶ Add
 500897-3Shipping Plug  no longer available — call for a replacement2
 28-P-219Oil Seal1▶ Add
 69-P-18Tag (Wet Spline Only) ▶ Add
 28-P-259O-Ring1▶ Add
 28-P-42O-Ring1▶ Add
 328591-68XConversion Kit (XV to VV) (Splash Lube)  no longer available — call for a replacement
 328948-8XGasket & Installation Instructions ▶ Add
 3-P-916Output Shaft  call to confirm availability1
 329129-1XPressure Lube1▶ Add
 21-P-517Output Bearing Cap1▶ Add
 329130-1XPressure Lube1▶ Add
 21-P-596Output Bearing Cap (For Pressure Lube)1▶ Add
 329130-3X20 Inch Hose Assembly1▶ Add
 21-P-517Rear Bearing Cap1▶ Add
 329224XLoose Part1▶ Add
 21-P-596Rear Bearing Cap (For Pressure Lube)1▶ Add
 379231Plug Pipe ▶ Add
 28-P-211Oil Seal2▶ Add
 378431-11 Hex Capscrew  call to confirm availability4
 378382Hex Nut  no longer available — call for a replacement2
 379484Plug O-Ring1▶ Add
 3-1-3431Companion Flange  call to confirm availability2
 379505Retainer, O-Ring ▶ Add
 560982Tapered Bearing Cup2▶ Add
 379556Tee .438"-2 ▶ Add
 560986Tapered Bearing Cone2▶ Add
 379564-2Cap Thread1▶ Add
 379688Lubricant ▶ Add
 328591-69XConversion Kit (XV to VV) (Splash Lube)  no longer available — call for a replacement
 4-P-162Spacer ▶ Add
 3-P-916Output Shaft  call to confirm availability1
 21-P-517Output Bearing Cap1▶ Add
 21-P-596Output Bearing Cap (For Pressure Lube)1▶ Add
 21-P-517Rear Bearing Cap1▶ Add
 560976Bearing Tape ▶ Add
 21-P-596Rear Bearing Cap (For Pressure Lube)1▶ Add
 560977Bearing Tape ▶ Add
 28-P-211Oil Seal2▶ Add
 560982Tapered Bearing Cup ▶ Add
 378382Hex Nut  no longer available — call for a replacement2
 560986Tapered Bearing Cone ▶ Add
 3-1-3431Companion Flange  call to confirm availability2
 9-P-80Idler Shaft1▶ Add
 560982Tapered Bearing Cup2▶ Add
 3-P-940Output Shaft1▶ Add
 560986Tapered Bearing Cone2▶ Add
 378422-1Drive Screw2▶ Add
 68-P-2Name Plate1▶ Add

Bill of Materials — manual page 46

ItemPart numberDescriptionQtyOrder
 328591-119X• Conversion Kit (XV to AC) (X Lube Option) ▶ Add
 328591-128XConversion Kit (XV to AZ) (Pressure Lube)  no longer available — call for a replacement
 3-P-872Output Shaft1▶ Add
 3-P-873Output Shaft1▶ Add
 28-P-217Output Bearing Cap  no longer available — call for a replacement1
 28-P-42O-Ring1▶ Add
 21-P-596Output Bearing Cap (For Pressure Lube)1▶ Add
 28-P-259O-Ring1▶ Add
 28-P-211Oil Seal1▶ Add
 28-P-219Oil Seal1▶ Add
 378382Hex Nut  no longer available — call for a replacement4
 28-P-198O-Ring1▶ Add
 379742Companion Flange1▶ Add
 28-P-198O-Ring1▶ Add
 560982Tapered Bearing Cup1▶ Add
 22-P-98Gasket1▶ Add
 560986Tapered Bearing Cone1▶ Add
 21-P-597Bearing Cap1▶ Add
 328591-120X• Conversion Kit (XV to AC) (P Lube Option) ▶ Add
 9-P-80Idler Shaft1▶ Add
 3-P-872Output Shaft1▶ Add
 560986Tapered Bearing Cone1▶ Add
 28-P-216Output Bearing Cap1▶ Add
 560982Tapered Bearing Cup1▶ Add
 329273XOutput Bearing Cap (For Pressure Lube)1▶ Add
 560977Bearing Tape1▶ Add
 378447-6Oil Seal1▶ Add
 560976Bearing Tape1▶ Add
 500007-29Hex Nut4▶ Add
 379558Companion Flange1▶ Add
 560982Tapered Bearing Cup1▶ Add
 560986Tapered Bearing Cone1▶ Add
 4-P-162Spacer1▶ Add
 379556Tee .438"-21▶ Add
 328591-127XConversion Kit (XV to AZ) (Splash Lube) ▶ Add
 379505Retainer, O-Ring1▶ Add
 378422-1Drive Screw2▶ Add
 379484Plug O-Ring1▶ Add
 560986Tapered Bearing Cone1▶ Add
 378431-11Hex Cap screw4▶ Add
 560977Bearing Tape1▶ Add
 379231Plug Pipe1▶ Add
 560976Bearing Tape1▶ Add
 378422-1Drive Screw2▶ Add
 329224XLoose Part1▶ Add
 329130-3X20 Inch Hose Assembly1▶ Add
 329130-1XPressure Lube ▶ Add
 4-P-162Spacer1▶ Add
 329129-1XPressure Lube ▶ Add
 379688Lubricant ▶ Add
 68-P-2Name Plate ▶ Add
 3-P-873Output Shaft ▶ Add
 28-P-219Oil Seal ▶ Add
 328591-133XConversion Kit (XS to GS)  no longer available — call for a replacement
 28-P-198O-Ring ▶ Add
 28-P-198O-Ring1▶ Add
 21-P-539Flange ▶ Add
 379432-1Capscrew3▶ Add
 378431-11Hex Capscrew4▶ Add
 28-P-226Thrust Bearing1▶ Add
 68-P-2Name Plate1▶ Add
 28-P-219Oil Seal1▶ Add
 22-P-98Gasket1▶ Add
 21-P-653XBearing Cap Assembly1▶ Add
 3-P-949XOutput Shaft1▶ Add
 379688Lubricant1▶ Add
 3-P-949Output Shaft1▶ Add
 379819Grease Fit1▶ Add
 500168-2Fitting1▶ Add
 379231Pipe Plug1▶ Add
 560986Tapered Bearing Cone1▶ Add
 560982Tapered Bearing Cup1▶ Add
 560986Tapered Bearing Cone1▶ Add

Bill of Materials — manual page 47

ItemPart numberDescriptionQtyOrder
 328591-135XConversion Kit (XV to GS) ▶ Add
 329111-2X• Conversion Kit (LF & LH) ▶ Add
 379432-1Capscrew3▶ Add
 21-P-544Pump Flange1▶ Add
 28-P-198O-Ring1▶ Add
 28-P-196O-ring 5.859" x .139"1▶ Add
 28-P-198O-ring 0. 798" x .103"1▶ Add
 28-P-226Thrust Bearing1▶ Add
 28-P-219Oil seal 2.506" x 1.625" x .375"1▶ Add
 28-P-219Oil Seal1▶ Add
 3-P-877Output Shaft  no longer available — call for a replacement1
 22-P-98Gasket1▶ Add
 329110-1XInstallation Kit1▶ Add
 378117Drain Plug1▶ Add
 21-P-515Bearing Cap1▶ Add
 379181Hose assembly1▶ Add
 37927390° Elbow1▶ Add
 21-P-653XBearing Cap Assembly1▶ Add
 379526Strain Plug1▶ Add
 3-P-949XOutput Shaft1▶ Add
 379636Installation Instructions1▶ Add
 379688Lubricant2▶ Add
 329127XBearing Cap & Lube Pump Assembly  no longer available — call for a replacement1
 3-P-949Output Shaft1▶ Add
 329129XHose Assembly1▶ Add
 379819Grease Fit1▶ Add
 329130-1XPressure Lube ▶ Add
 500168-2Fitting1▶ Add
 329130-3X20 Inch Hose Assembly ▶ Add
 560982Tapered Bearing Cup1▶ Add
 329224XLoose Parts Kit ▶ Add
 560986Tapered Bearing Cone1▶ Add
 379231Pipe Plug ▶ Add
 560976Bearing Tape1▶ Add
 379516-1Install Sketch  call to confirm availability
 560977Bearing Tape1▶ Add
 379556Tee .438"-20 ▶ Add
 4-P-162Spacer1▶ Add
 379688Lubricant1▶ Add
 4-P-162Spacer XV1▶ Add
 329111-1XConversion Kit (LG)  no longer available — call for a replacement
 21-P-596Bearing Cap1▶ Add
 28-P-194O-ring 1 .424" .103"1▶ Add
 28-P-196O-ring 5.859" .139"1▶ Add
 560976Tapered Bearing Cone1▶ Add
 28-P-198O-ring 0.798" .103"1▶ Add
 560977Tapered Bearing Cup2▶ Add
 28-P-211Oil seal 3.001" x 2.00" x .375"1▶ Add
 560986Tapered Bearing Cone1▶ Add
 3-P-879Output Shaft1▶ Add
 9-P-80Idler Shaft1▶ Add
 329110-1XInstallation Kit1▶ Add
 378422-1Driven Screw2▶ Add
 378117Drain Plug1▶ Add
 28-P-42O-ring 1.051" x .070"1▶ Add
 379181Hose assembly1▶ Add
 28-P-245XO-ring 5.071" x .103"1▶ Add
 37927390° Elbow1▶ Add
 68-P-2Name Plate1▶ Add
 379526Strain Plug1▶ Add
 379636Installation Instructions1▶ Add
 329127XBearing Cap & Lube Pump Assembly  no longer available — call for a replacement1
 329129XHose Assembly1▶ Add
 329130-1XPressure Lube1▶ Add
 329130-3X20 Inch Hose Assembly1▶ Add
 329224XLoose Parts Kit1▶ Add
 379516-1Install Sketch  call to confirm availability1
 379556Tee .438"-201▶ Add
 560982Tapered Bearing Cup1▶ Add
 560986Tapered Bearing Cone2▶ Add
 9-P-80Idler Shaft1▶ Add
 378422-1Driven Screw2▶ Add
 68-P-2Name Plate1▶ Add

Bill of Materials — manual page 48

ItemPart numberDescriptionQtyOrder
 329111-3X+ Conversion Kit (LL)  no longer available — call for a replacement
 378422-1Driven Screw2▶ Add
 379231Pipe Plug1▶ Add
 379516-1Install Sketch  call to confirm availability1
 379556Tee .438"-201▶ Add
 379688Lubricant1▶ Add
 4-P-162Spacer XV1▶ Add
 560976Tapered Bearing Cone ▶ Add
 560977Tapered Bearing Cup ▶ Add
 560986Tapered Bearing Cone ▶ Add
 9-P-80Idler Shaft ▶ Add
 21-P-592Bearing Cap ▶ Add
 28-P-194O-Ring 1.424" X .103" ▶ Add
 28-P-196O-Ring 5.859" X .139" ▶ Add
 28-P-198O-Ring 798 " x .103" ▶ Add
 28-P-219Oil Seal 2.506" x 1.625" x .375" ▶ Add
 28-P-259O-Ring ▶ Add
 3-P-878Output Shaft  no longer available — call for a replacement
 329110-1XInstallation Kit ▶ Add
 378117Drain Plug ▶ Add
 379181Hose Assembly ▶ Add
 37927390° Elbow ▶ Add
 379526Strain Plug ▶ Add
 379636Installation Instructions ▶ Add
 329127XBearing Cap & Lube Pump Assembly  no longer available — call for a replacement
 329129XHose Assembly ▶ Add
 329130-1XPressure Lube ▶ Add
 329224XLoose Part1▶ Add
 68-P-2Name Plate1▶ Add

Part numbers and descriptions are taken from the Chelsea/Parker parts manual on this page. Chelsea® and Parker® are trademarks of Parker Hannifin Corporation; Pro Gear and Transmission is an independent distributor.

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
!
Call Us Now!
