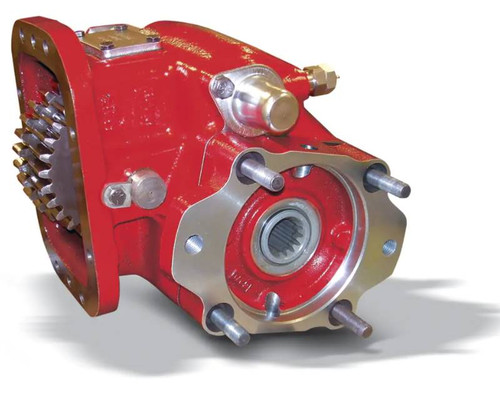

The Chelsea 880XBAKX-M4XS is an 880 Series 8-bolt power take-off assembly built for heavy-duty, high-torque applications. It uses a lever mechanical shift and delivers up to 500 lb-ft intermittent torque (check application pages for actual ratings). The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, and the PTO is compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions, among others. Output power reaches 56+ HP, with shaft power rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing and removable shift cover make this unit a practical choice for bulk haulers, fire trucks, oil field equipment, winch setups, and large truck recovery. Call us to confirm proper fit for your application.
Features
8-Bolt mounting for compatibility with most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller
Lever mechanical shift with removable shift cover for straightforward backlash adjustment
1-1/2"-10T spline output shaft with 1410 series companion flange
Intermittent torque rated to 500 lb-ft (678 Nm); check application pages for actual torque ratings
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Cast iron housing with dual-pump output for mounting a pump on each end of the PTO
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
- Shift Type: Lever Mechanical
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, Other
