Chelsea 880 Series PTO Units

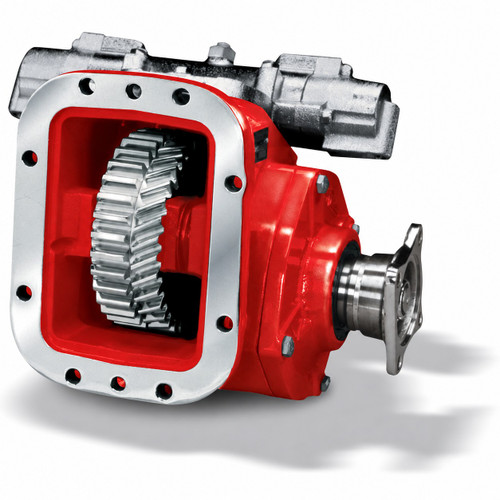

The Chelsea 880 Series is a Parker Chelsea 8-bolt PTO. Parker notes that its 880 output options and conversion kits are normally used on the bottom or side openings of Fuller, Mack and Spicer transmissions, and the 880 is also built for the Eaton Endurant and, with the required adapter, the Detroit DT12.
880 Series features
- Shift options include air shift, 12 volt electric/air shift, an Eaton Endurant electric/air shift, lever shift and constant mesh.
- Standard or deep mount, with metric studs or without a stud kit.
- Pressure lube or non pressure lube.
- SAE B, BB and C pump flanges including a greaseable SAE C output, DIN 5462, or a 1410 series companion flange.
Find your exact unit
Start with the model number on the white tag on your PTO. An 880 model number reads: series, mounting, gear ratio, input gear and lube option, then after the dash the shift option, assembly arrangement and output. For example, 880GRAHX-A3XS is a standard mount unit with metric studs, no pressure lube, air shift, assembly arrangement 3 and an SAE C flange with an SAE C shaft.
For repairs, use our interactive Chelsea 880 Series parts manual or shop all Chelsea PTO parts. See also the Chelsea 489 Series, the Chelsea 680 Series and the Chelsea 823 Series.
If you do not see the Chelsea 880 Series PTO you need, or you are not sure which model fits, call us toll free at (877) 776-4600 and we will match a unit to your transmission and application.
Not sure the 880 Series is the right fit? Compare it with the rest of the Chelsea 800 Series line, or browse all Chelsea PTO series to find a unit for any transmission.
