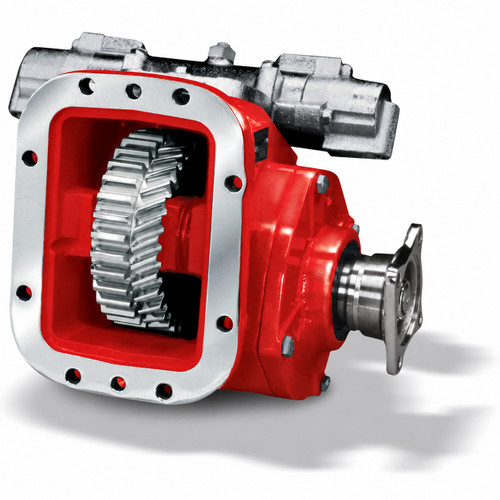

The Chelsea 880 Series Power Take-Off Assembly, part number 880XBAKX-Y3XV or 880XBAKXY3XV, is an 8-bolt, lever-mechanical shift PTO rated for intermittent torque in the 401-500 lb-ft range (check application pages for actual torque ratings). The output shaft is a 1-1/2"-10T spline paired with a 1410 series companion flange, delivering 48 HP at 500 RPM and 95 HP at 1000 RPM. Compatible with Volvo/Mack, Allison, Eaton/Fuller, and other transmission manufacturers, it suits demanding applications including bulk haulers, fire trucks, oil field equipment, and large truck recovery. Cast iron housing and a removable shift cover for easier backlash adjustment are standard features of the 880 Series. Call us to confirm proper fit for your specific transmission.
Features
8-Bolt mounting pattern fits most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller
Lever-mechanical shift type; optional air control shift available within the 880 Series
1-1/2"-10T spline output with 1410 series companion flange
Intermittent torque rating: 401-500 lb-ft (check application pages for actual torque ratings)
Shaft power output: 48 HP at 500 RPM, 95 HP at 1000 RPM
Cast iron housing with removable shift cover for simplified backlash adjustment
Tech Specs
- INTERMITTENT TORQUE: 401-500 lb-ft / 501+ Nm; 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- TRANSMISSION MANUFACTURER: Volvo/Mack, Allison, Eaton/Fuller, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP / 51+ kW
- OUTPUT SHAFT TYPE: 1-1/2"-10T Spline with 1410 Series Companion Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 48 HP at 500 RPM / 95 HP at 1000 RPM (36 kW at 500 RPM / 71 kW at 1000 RPM)
