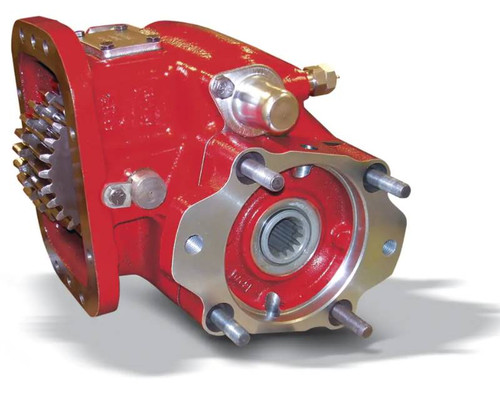

The Chelsea 880 Series Power Take-Off, part number 880XGAKP-M6XV or 880XGAKPM6XV, is an 8-bolt, lever-mechanical shift PTO built for heavy-duty applications including bulk haulers, fire trucks, oil field equipment, aerial units, and large recovery trucks. The output shaft is a 1-1/2"-10T spline with a 1410 series companion flange, rated at up to 500 lb-ft intermittent torque. Shaft power reaches 48 HP at 500 RPM and 95 HP at 1,000 RPM. Compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions, among others. The cast iron housing includes a removable shift cover for straightforward backlash adjustment. Dual-pump output allows a hydraulic pump to mount on each end of the unit. Call us to confirm proper fit for your application.
Features
8-bolt mounting for fitment on most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller
Lever-mechanical shift type; optional air control shift available on the 880 Series
1-1/2"-10T spline output shaft with 1410 series companion flange
Up to 500 lb-ft intermittent torque; 48 HP at 500 RPM and 95 HP at 1,000 RPM
Cast iron housing with removable shift cover for simplified backlash adjustment
Dual-pump output configuration for mounting a hydraulic pump on each end of the PTO
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, Other
- Shift Type: Lever Mechanical
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM) / 36 kW (500 RPM), 71 kW (1,000 RPM)
- Continuous Operation: Yes, with 30% de-rating
