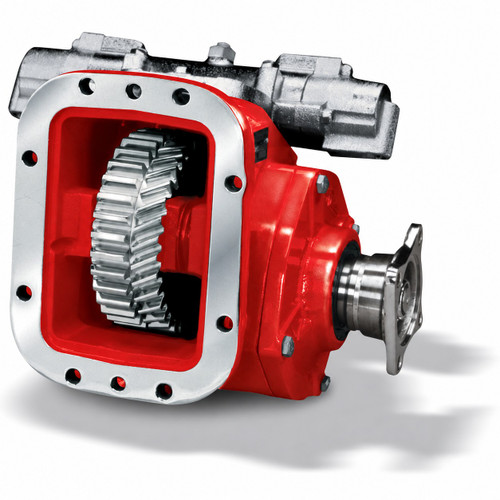

The Chelsea 880 Series Power Take-Off, part number 880XJITP-A6XS or 880XJITPA6XS, is an 8-bolt, lever mechanical shift PTO rated for up to 500 lb-ft (678 Nm) intermittent torque. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, delivering 48 HP at 500 RPM and 95 HP at 1000 RPM. Designed for high-torque, high-demand applications including fire trucks, bulk haulers, oil field equipment, aerial units, and large recovery trucks, the 880 Series fits most manual transmissions with an 8-bolt aperture, including Eaton/Fuller, Volvo/Mack, and Allison. Constant mesh input gears support both high and low speed operation. The removable shift cover simplifies backlash adjustment during installation. Call us to confirm proper fit for your application.
Features
8-Bolt mounting fits most manual transmissions with 8-bolt aperture, including Eaton/Fuller, Volvo/Mack, and Allison
Lever mechanical shift with optional air control shift available
1-1/2"-10T spline output shaft with 1410 companion flange; dual-pump output allows mounting a pump on each end
Intermittent torque rating: 500 lb-ft (678 Nm); shaft power 48 HP at 500 RPM, 95 HP at 1000 RPM
Cast iron housing with constant mesh input gears for high and low speed, high-torque service
Removable shift cover allows straightforward backlash adjustment to reduce installation time
Tech Specs
- Intermittent Torque: 500 lb-ft (678 Nm) - check application pages for actual torque ratings
- Transmission Manufacturer Compatibility: Eaton/Fuller, Volvo/Mack, Allison, Other
- Shift Type: Lever Mechanical
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1000 RPM
