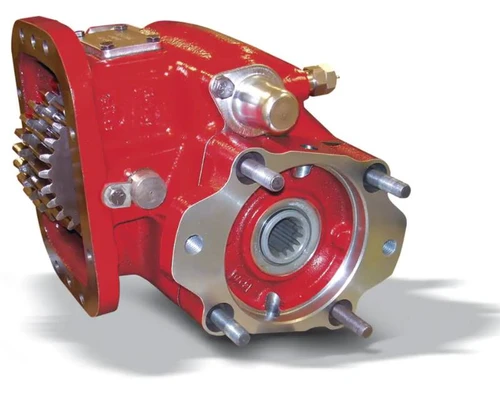

The Chelsea 880XMEVX-A4XV or 880XMEVXA4XV is an 880 Series Power Take-Off built for 8-bolt manual transmission apertures on Volvo/Mack, Allison, Eaton/Fuller, and other compatible transmissions. It shifts via lever mechanical control and delivers a 1-1/2"-10T spline output with a 1410 companion flange, rated for up to 500 lb-ft of intermittent torque (verify actual rating on the Chelsea application pages for your specific setup). Shaft power output reaches 48 HP at 500 RPM and 95 HP at 1000 RPM. The 880 Series suits demanding vocations: bulk haulers, fire trucks, oil field equipment, aerial units, winch applications, and large truck recovery. A removable shift cover simplifies backlash adjustment during installation. Call us to confirm proper fit for your transmission.
Features
8-bolt mounting for most compatible manual transmissions
Lever mechanical shift with optional air control shift available
1-1/2"-10T spline output with 1410 series companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm); verify on application pages
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Removable shift cover for simplified backlash adjustment
Tech Specs
- INTERMITTENT TORQUE: 401-500 lb-ft (501+ Nm); 500 lb-ft / 678 Nm (check application pages for actual torque rating)
- TRANSMISSION MANUFACTURER: Volvo/Mack, Allison, Eaton/Fuller, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP (51+ kW)
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 48 HP at 500 RPM; 95 HP at 1000 RPM (36 kW at 500 RPM; 71 kW at 1000 RPM)
